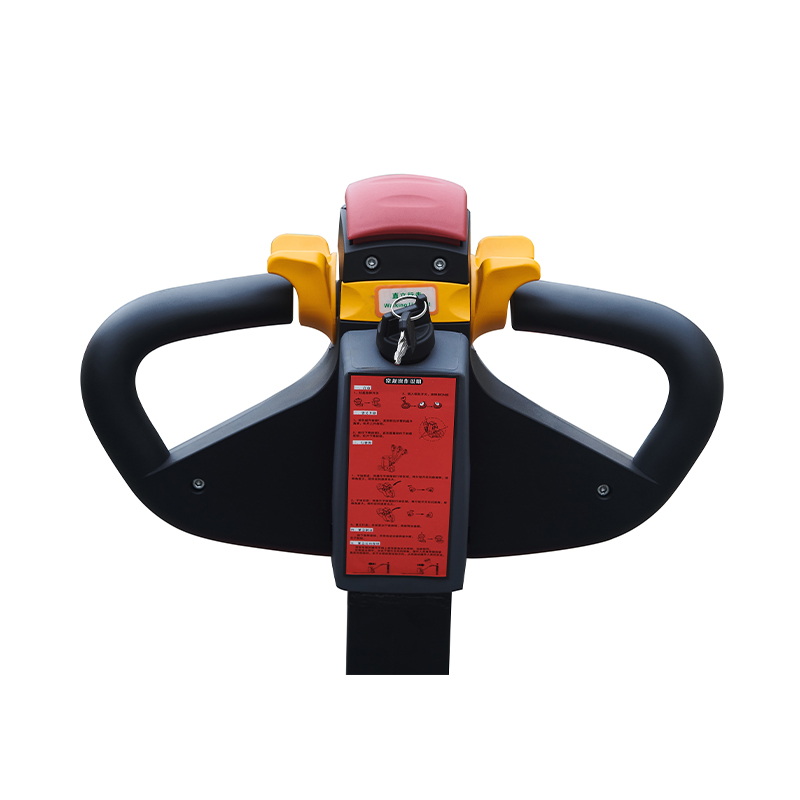

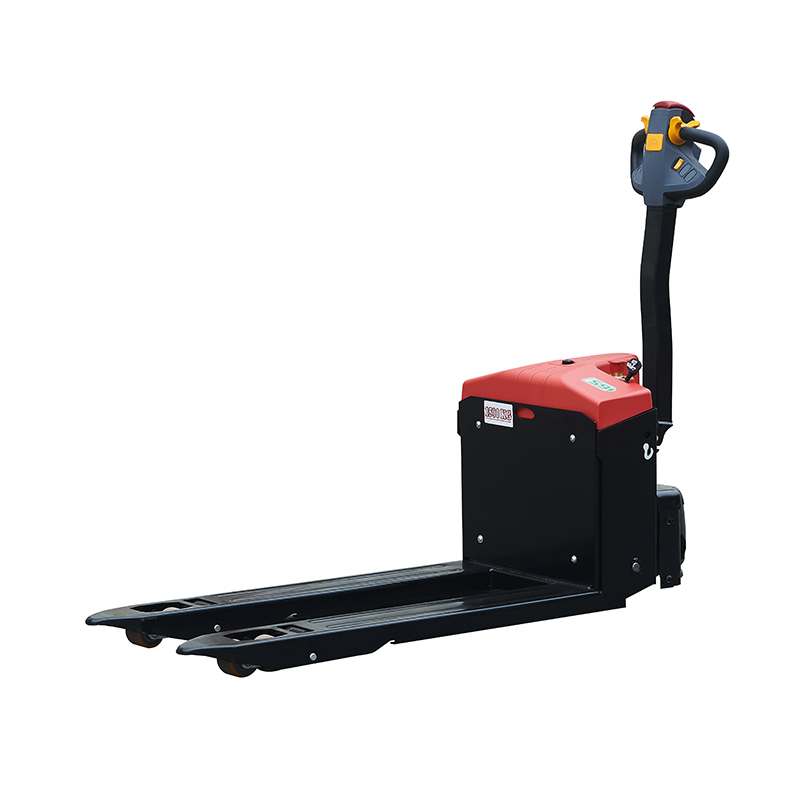

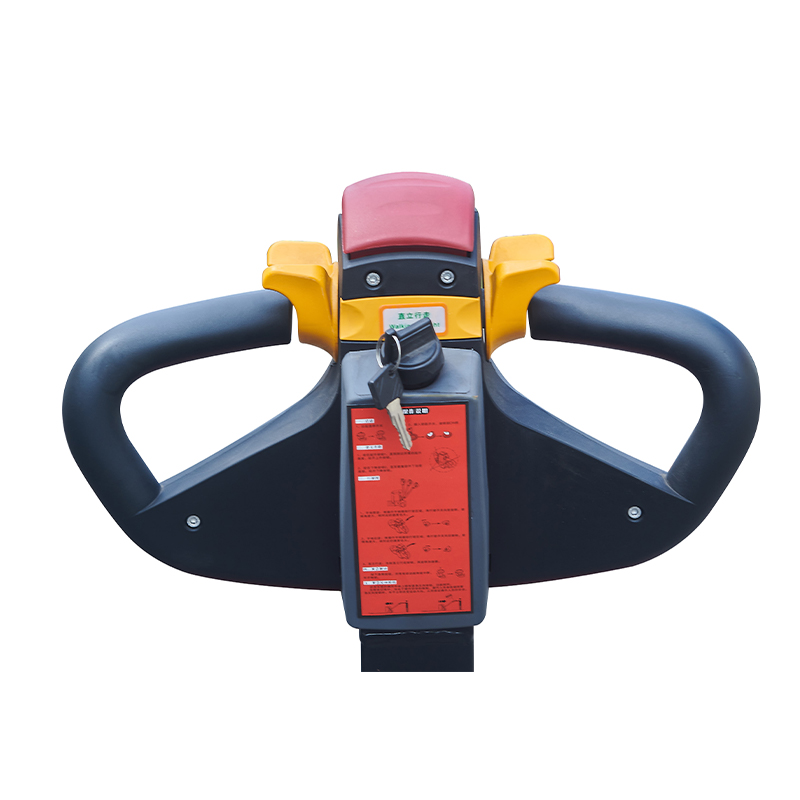

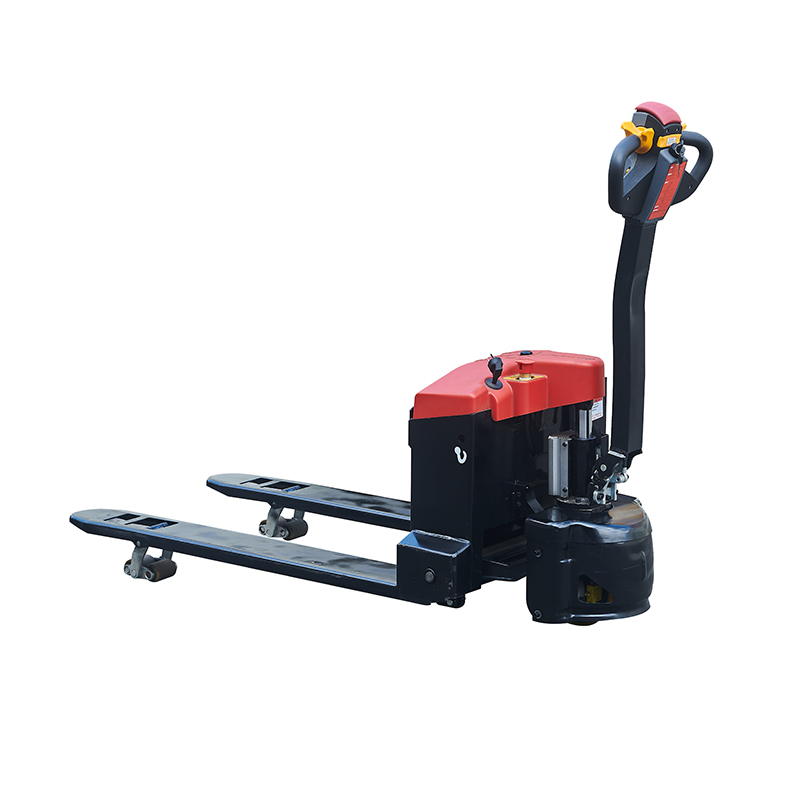

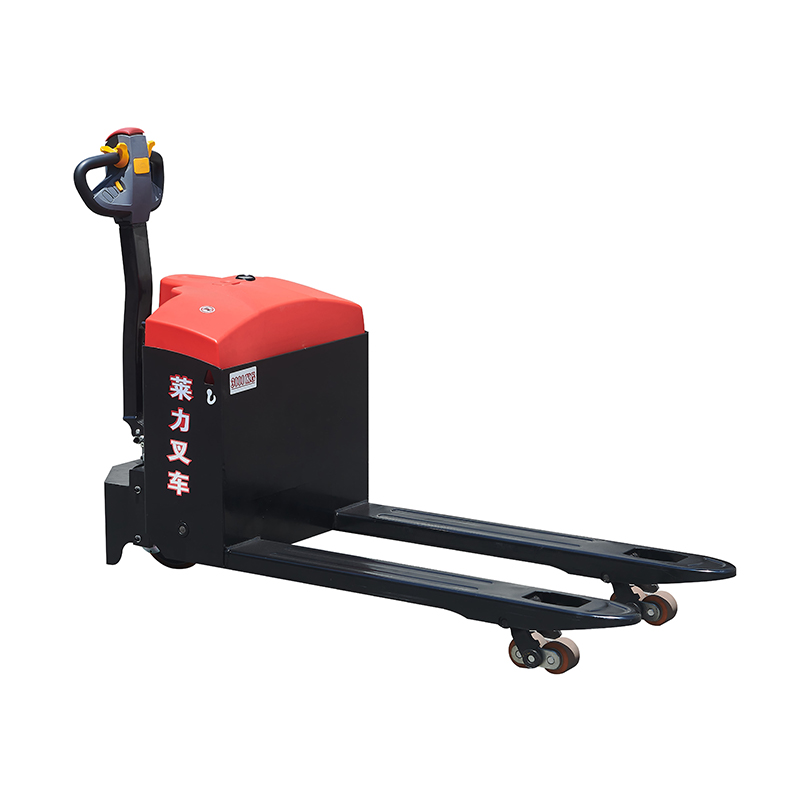

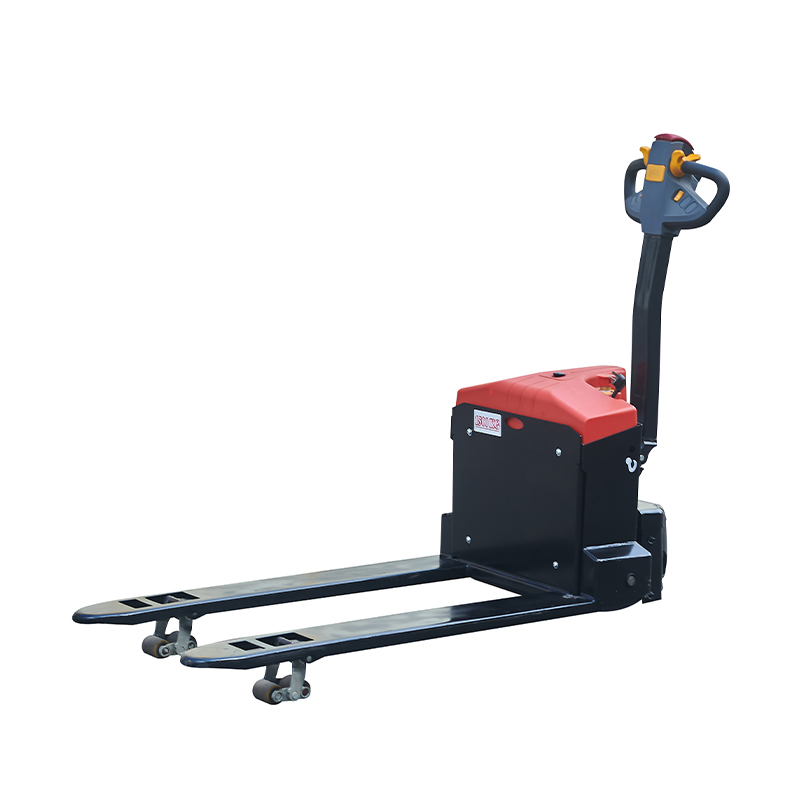

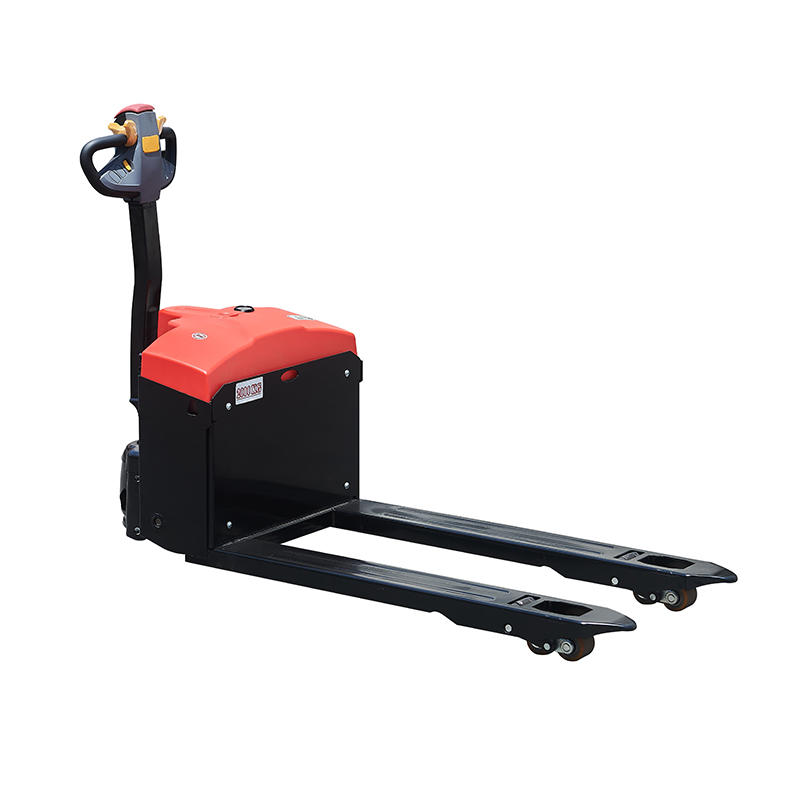

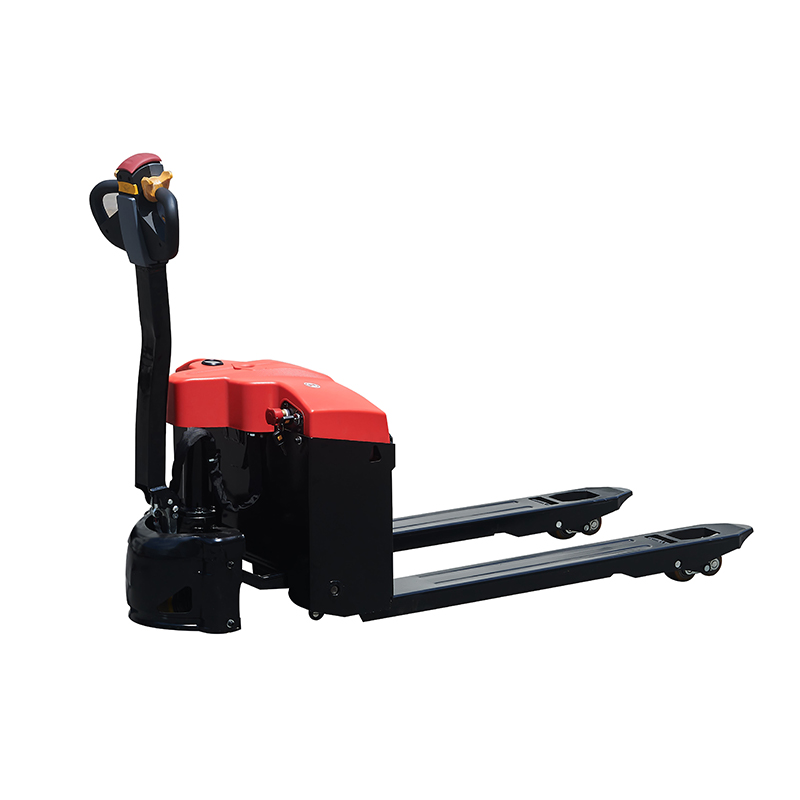

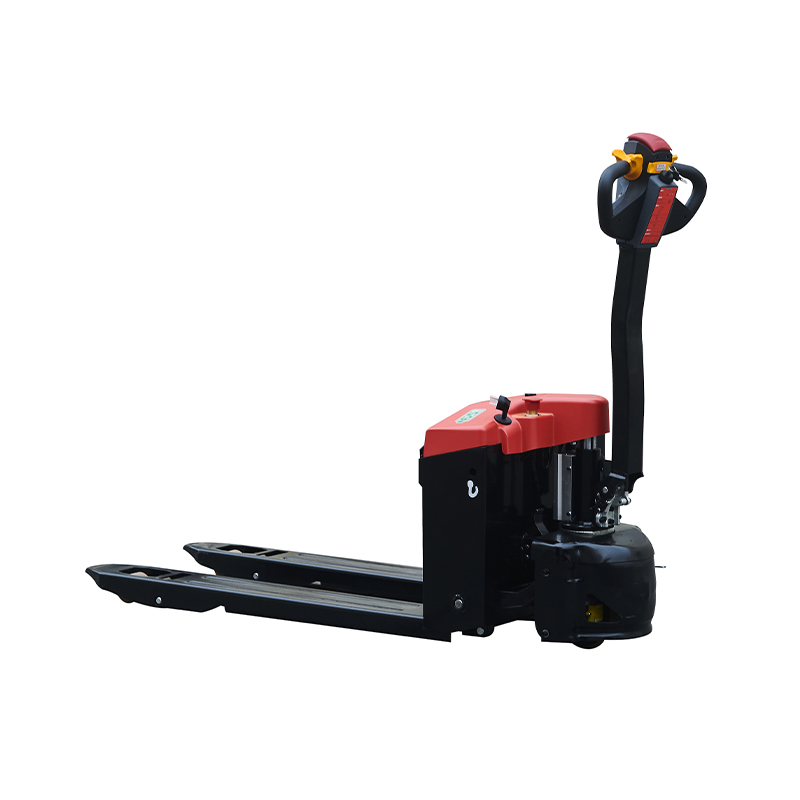

The truck features a compact structure and lightweight design, enabling easy maneuverability and operation in confined spaces such as warehouses, truck compartments, and elevators. The pedestrian (walk-behind) design ensures intuitive and simple operation.

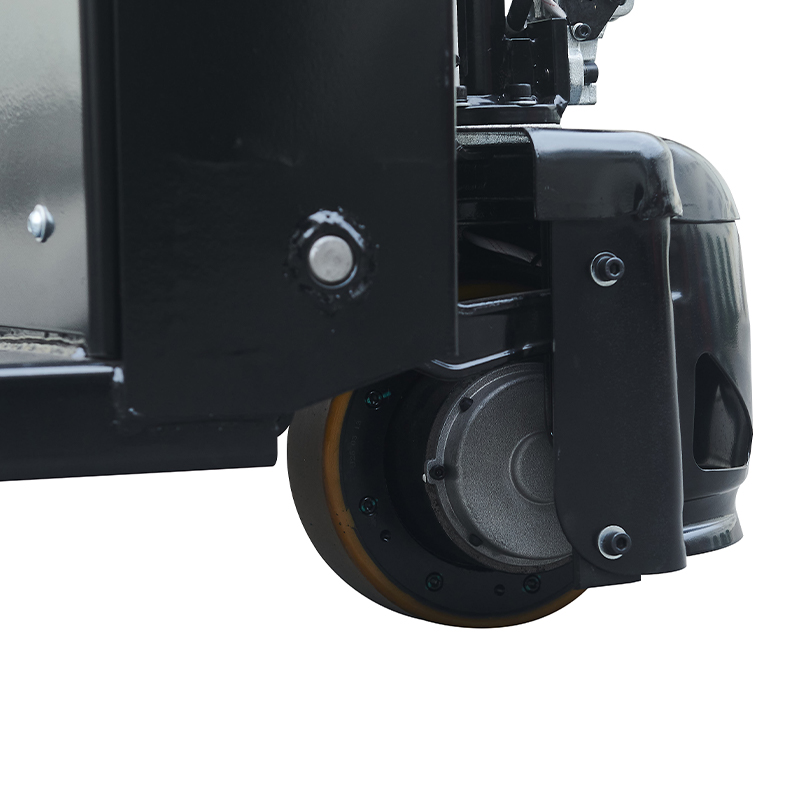

Equipped with a high-efficiency electric drive system, it delivers zero emissions and low noise, meeting the requirements of green warehousing. Compared with internal combustion equipment, it significantly reduces energy consumption costs. An optional lithium battery is available, offering maintenance-free operation and extended service life.
The modular design allows key components to be easily disassembled and serviced. Core components such as the motor and controller undergo rigorous testing to ensure stability and reliability during long-term continuous operation.
| Parameter | Unit | LL-T15 | LL-T20 | LL-T30 |
| Model | - | LL-T15 | LL-T20 | LL-T30 |
| Rated Load | kg | 1500 | 2000 | 3000 |
| Dead Weight (Including Battery) | kg | 195 | 220 | 335 |
| Vehicle Length | mm | 1638 | 1810 | 1890 |
| Single Fork Width | mm | 150 | 150 | 160 |
| Outer Fork Width | mm | 560(685) | 560(685) | 560(685) |
| Fork Length | mm | 1150 | 1220 | 1220 |
| Maximum Height of Fork | mm | 195 | 195 | 195 |
| Turning Radius | mm | 1485 | 1485 | 1780 |
| Walking Speed (Full Load / No Load) | km/h | 4 / 4.5 | 4 / 5.5 | 4 / 5 |
| Maximum Gradeability (Full Load / No Load) | % | 5 / 6 | 8 / 16 | 5 / 6 |
| Rated Power of Drive Motor (S2 60 minutes) | kW | 0.75 | 1 | 1.5 |
| Rated Power of Hoisting Motor (S3 15%) | kW | 0.8 | 0.8 | 0.8 |
| Battery Voltage / Nominal Capacity | V/Ah | 2x12/65 | 12x2/80 | 2x12/100 |
