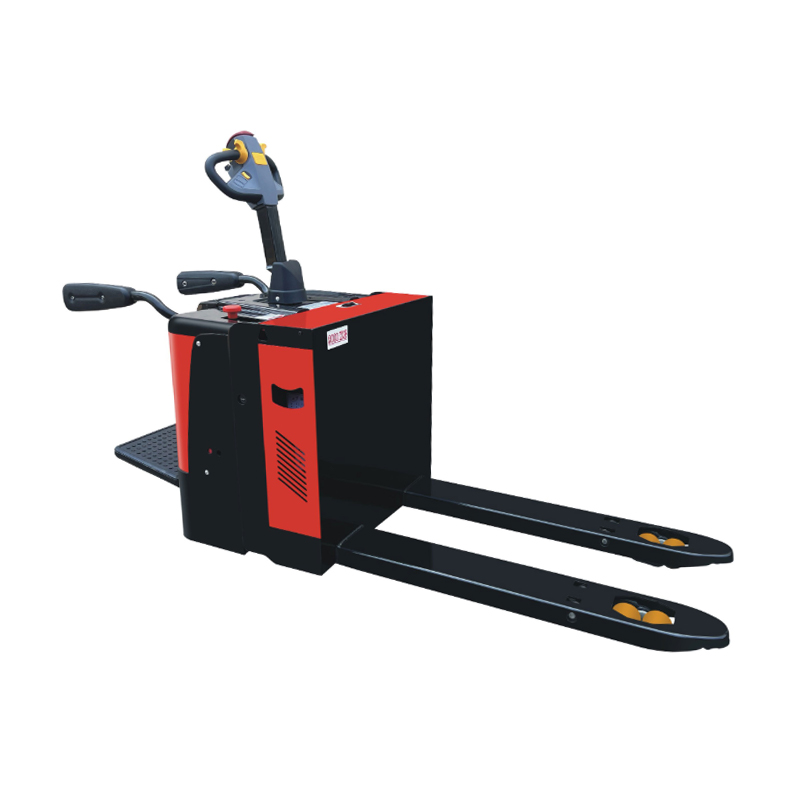

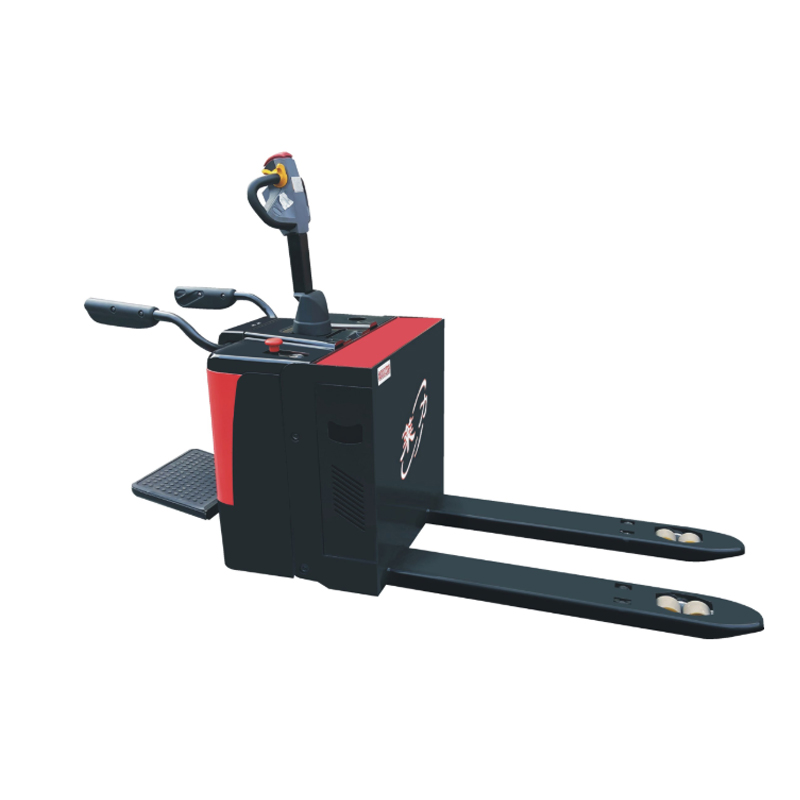

The operator adopts a stand-on driving position, providing a wide field of view for better observation of both the load and travel path. Compared with pedestrian models, it is more suitable for longer distances or high-frequency handling operations.

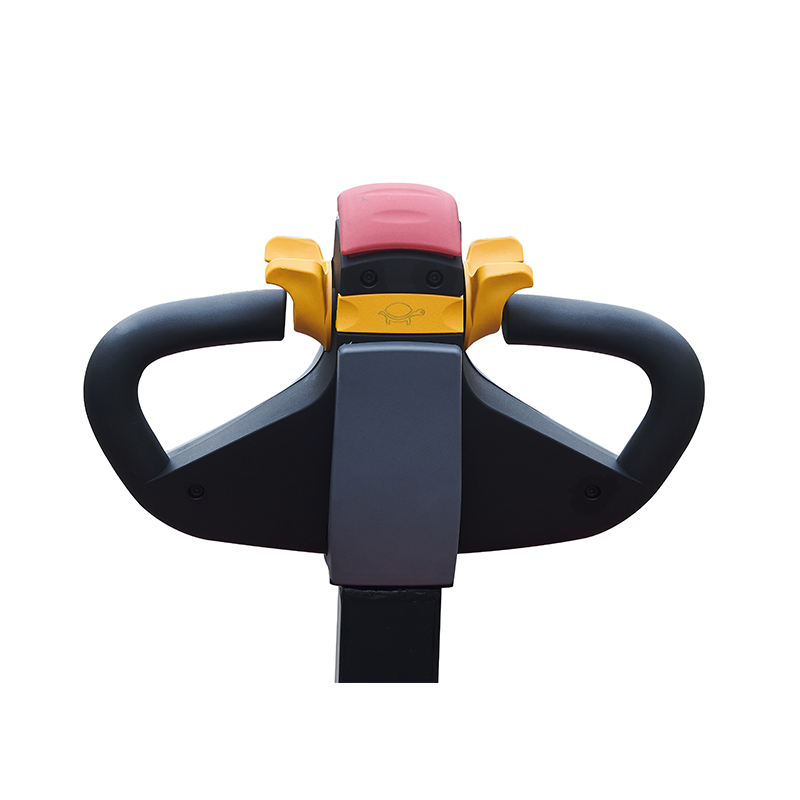

An electronic steering system is standard, ensuring light and precise steering. A mechanical steering option is also available to meet different user preferences.
An optional lithium battery eliminates the need for watering and maintenance, supports opportunity charging, and offers a longer service life.
Equipped with a high-power drive motor and an efficient hydraulic system, the truck ensures smooth starting under full load and strong climbing capability.
| Parameter | DBY20 | DBY30 | DBY50 |
| Model | DBY20 | DBY30 | DBY50 |
| Power Source | Electric | Electric | Electric |
| Operation Type | Standing (Rider-operated) | Standing (Rider-operated) | Standing (Rider-operated) |
| Load Capacity (kg) | 2000 | 3000 | 5000 |
| Load Centre (mm) | 600 | 600 | 600 |
| Wheel Type (Drive / Balance / Load) | PU/PU/PU | PU/PU/PU | PU/PU/PU |
| Driving Wheel Size (mm) | Φ230×75 | Φ230×75 | Φ310×110 |

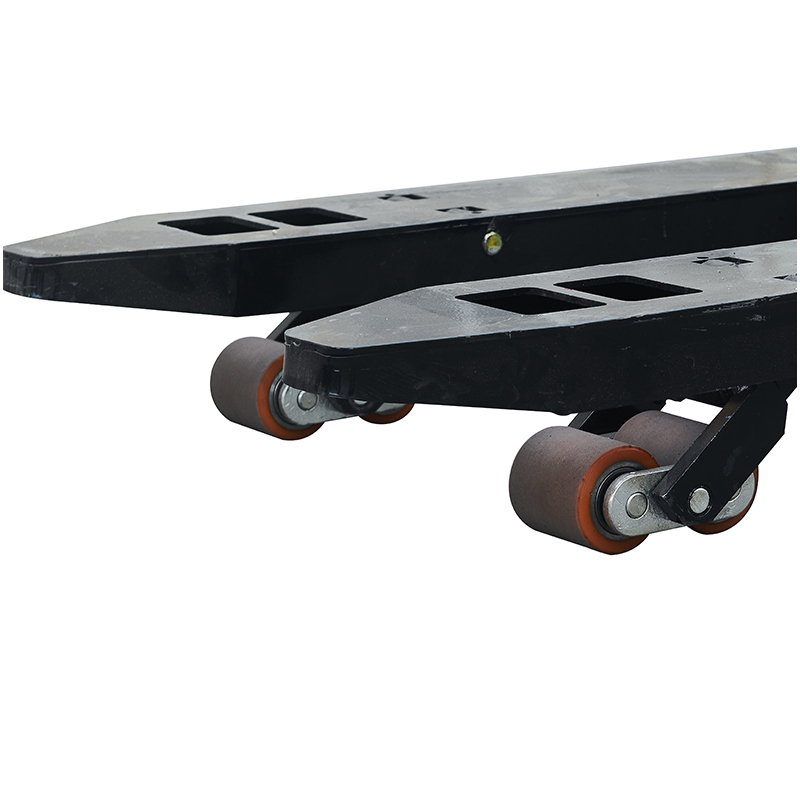

| Load Wheel Size (mm) | Φ85×70 | Φ85×70 | Φ85×96 |
| Balance Wheel Size (mm) | Φ130×55 | Φ130×55 | Φ100×65 |
| Quantity (Drive / Balance / Load Wheel) | 2001/2/4 | 2001/2/4 | 2001/2/4 |
| Maximum Lifting Height (Cylinder Stroke) (mm) | 115 | 115 | 115 |
| Handle Minimum / Maximum Height (Operating Position) (mm) | 1000/1480 | 1000/1480 | 1000/1480 |
| Minimum Fork Height (mm) | 90 | 90 | 90 |
| Maximum Fork Height (mm) | 200 | 200 | 200 |
| Overall Length (Folded Platform) (mm) | 2030 | 2030 | 2050 |
| Overall Width (mm) | 860 | 860 | 925 |
| Fork Size (mm) | 65/182/1220 | 65/182/1220 | 65/200/1220 |
| Overall Fork Width (mm) | 680 | 680 | 685 |
| Turning Radius (mm) | 1665 | 1665 | 1765 |
| Travel Speed (Load / Unload) (km/h) | 5.5/6 | 5.5/6 | 5.5/6 |
| Grade Ability (Load / Unload) (%) | 6/10 | 6/10 | 6/10 |
| Lifting Speed (Load / Unload) (m/s) | 0.038/0.05 | 0.038/0.05 | 0.038/0.05 |
| Descent Speed (Load / Unload) (m/s) | 0.05/0.038 | 0.05/0.038 | 0.05/0.038 |
| Rated Power of Drive Motor (kW) | 1.5 | 2 | 3 |
| Rated Power of Lifting Motor (kW) | 1.2 | 1.2 | 2.2 |
| Rated Power of Steering Motor (kW) | 0.2 | 0.2 | 0.4 |
| Brake Type | Electromagnetic | Electromagnetic | Electromagnetic |
| Steering Type | Electronic Steering | Electronic Steering | Electronic Steering |
| Battery Voltage / Nominal Capacity (V/Ah) | 24V/160 | 24V/210 | 24V/280 |
| Battery Weight (kg) | 170 | 190 | 220 |
| Service Weight (Including Battery) (kg) | 680 | 700 | 860 |
