Low Profile Hand Pallet Truck

Home / Product / Pallet Trucks / Hand Pallet Trucks / Low Profile Hand Pallet Truck
  • Low Profile Hand Pallet Truck

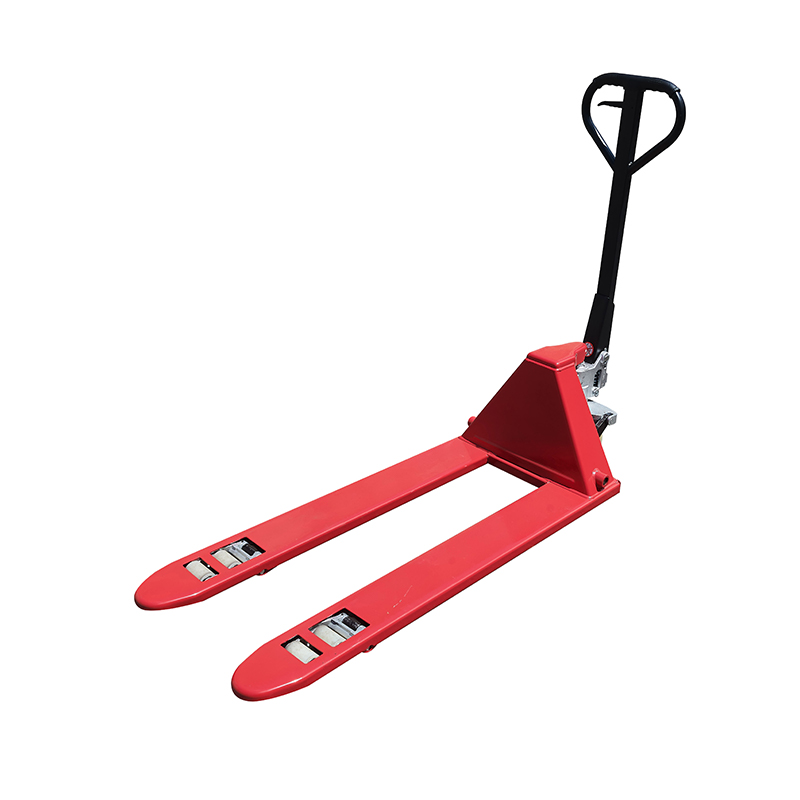

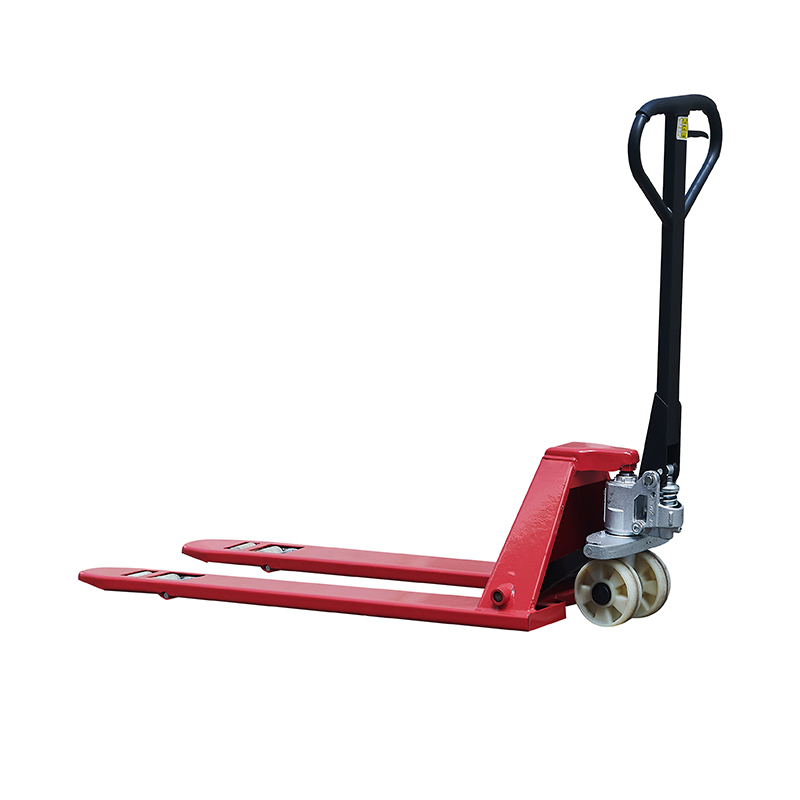

Low Profile Hand Pallet Truck

Available in multiple fork heights such as 51 mm, 65 mm, and 75 mm, allowing easy entry into low-clearance pallets.
Specially designed for low-profile pallets to meet specific handling requirements.

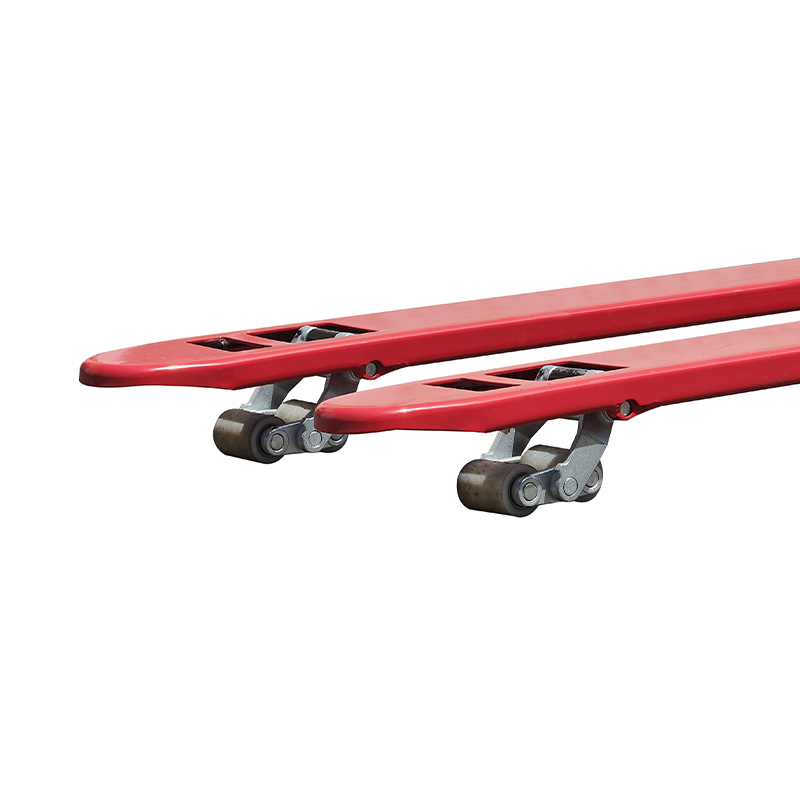

The tapered fork tips, combined with a low fork height, enable smooth insertion and withdrawal in narrow pallet openings, preventing damage to pallets and goods.

Contact Us
PREV：Galvanized Hand Pallet TruckNEXT：3T Heavy Duty Hand Pallet Truck
  • Specification
  • Contact Us
Parameter BI30-51 BI30-65 BI30-75
Model BI30-51 BI30-65 BI30-75
Rated Load (kg) 1500 2000 3000
Max. Fork Height (mm) 146 160 190
Min. Fork Height (mm) 51 65 75
Max. Lifting Height (mm) 95 95 115
Fork Size (Width×Length) (mm) 550×1150 / 685×1220 550×1150 / 685×1220 550×1150 / 685×1220
Individual Fork Width (mm) 160 160 160
Load Roller Diameter (mm) 50×70 55×70 74×70
Steering Wheel Diameter (mm) 160×50 160×50 180×50
