3T 5T Manual Tow Tractor

Home / Product / Ball-head Tractor / Manual Tow Tractors / 3T 5T Manual Tow Tractor
  • 3T 5T Manual Tow Tractor

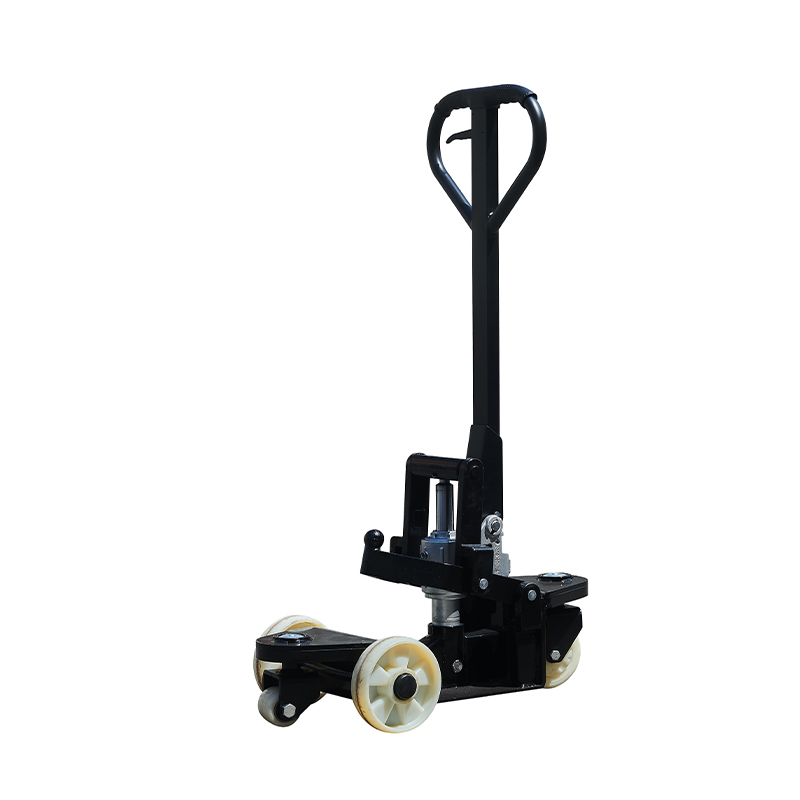

3T 5T Manual Tow Tractor

Available in 3T and 5T towing capacities, suitable for cart towing in manufacturing plants, warehouse operations, railway logistics, and other applications.

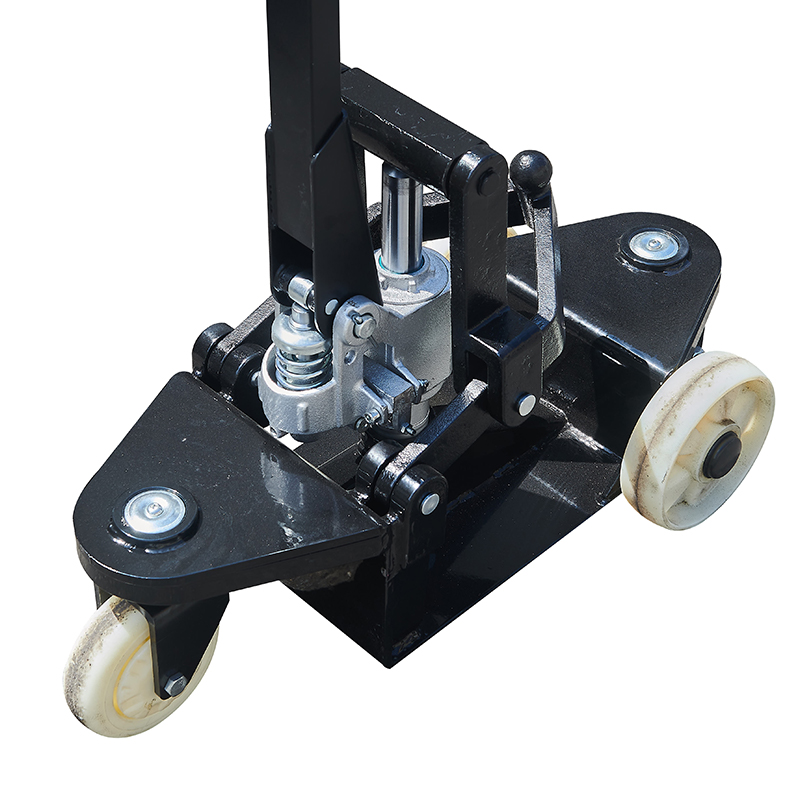

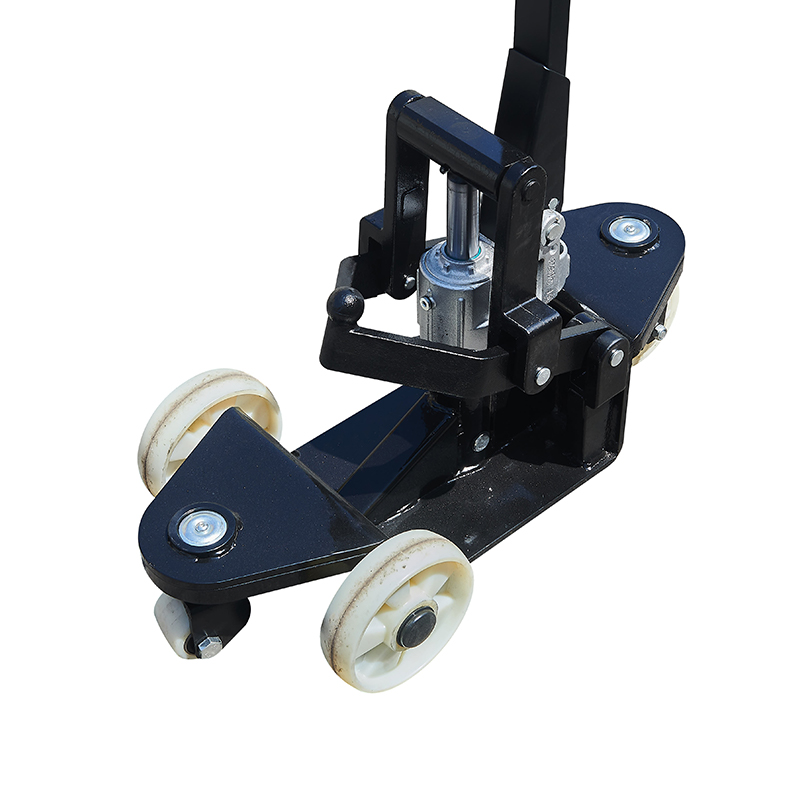

Equipped with an integrated hydraulic cylinder, allowing easy coupling and decoupling of carts or trailers without excessive effort.
Ergonomic rubber-coated handle ensures comfortable operation during prolonged use.
Fully manual operation with a simple structure—no battery or motor required—resulting in low maintenance cost.

Contact Us
PREV：No previous articleNEXT：No next article
  • Specification
  • Contact Us
Parameter Unit MT30-L MT30 MT50
Load Capacity kg 3000 3000 5000
Minimum Height of Ball Head mm 150 170 170
Maximum Height of Ball Head mm 420 440 440
Overall Size (L×W×H) mm 770×380×1200 770×380×1200 770×380×1200
Wheel Material - Nylon Nylon Nylon/PU
Front Universal Wheel Size/Quantity mm/pc 70×60/1 70×60/1 70×60
Bearing Wheel Size/Quantity mm/pc 160×50/2 180×50/2 180×50
Rear Universal Wheel Size/Quantity mm/pc 130×50/1 130×50/1 130×50
Service Weight kg 70 70 80
