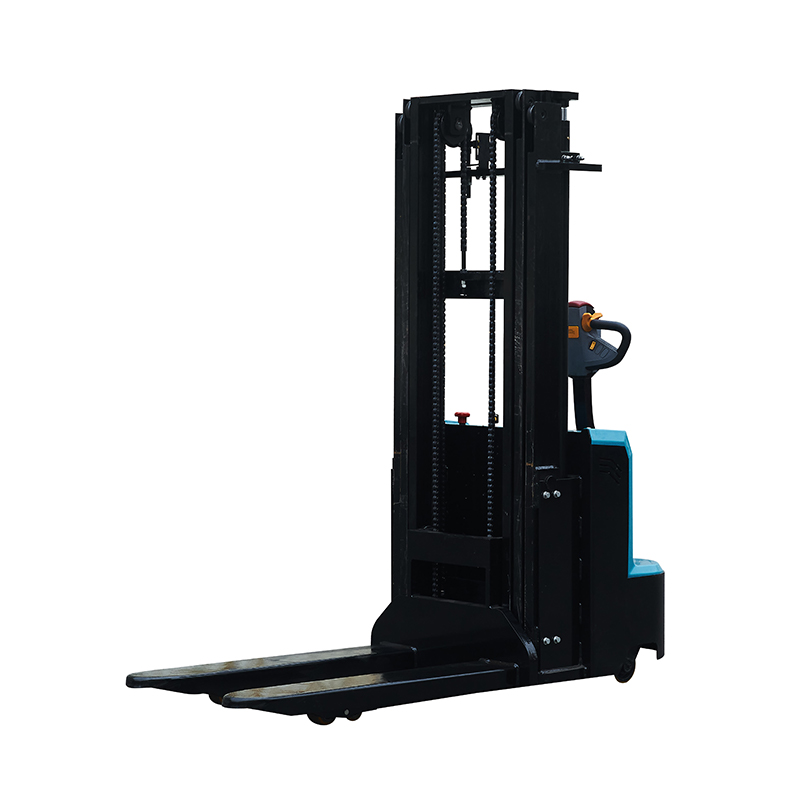

Available in 2.5-ton and 3-ton rated capacities, suitable for heavy-duty stacking and handling applications.

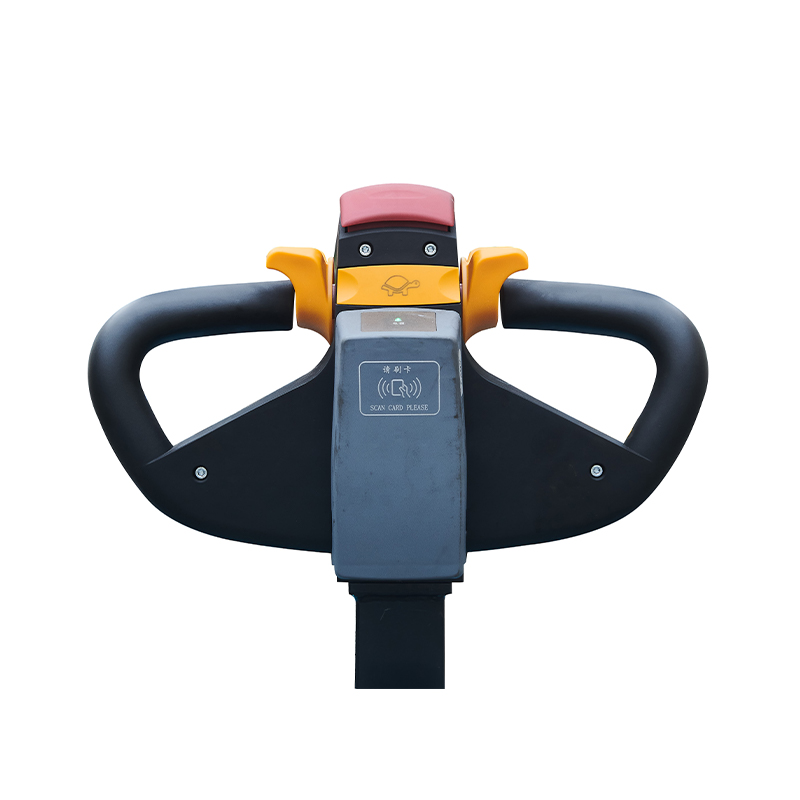

The centrally positioned control handle ensures balanced steering force and intuitive operation.
Equipped with a mechanical steering system, offering reliable structure, precise steering, and easy maintenance.

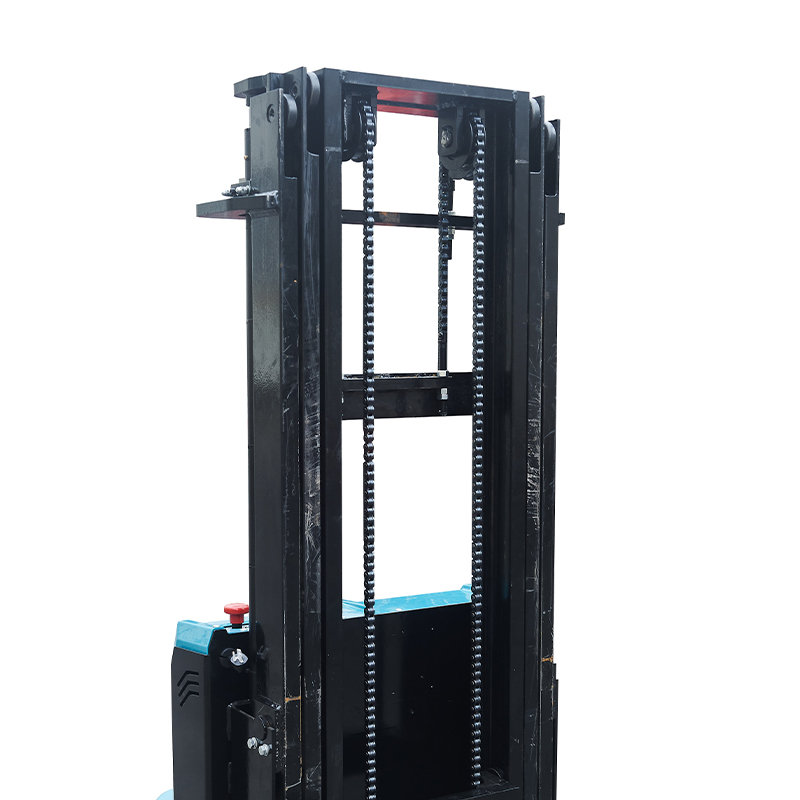

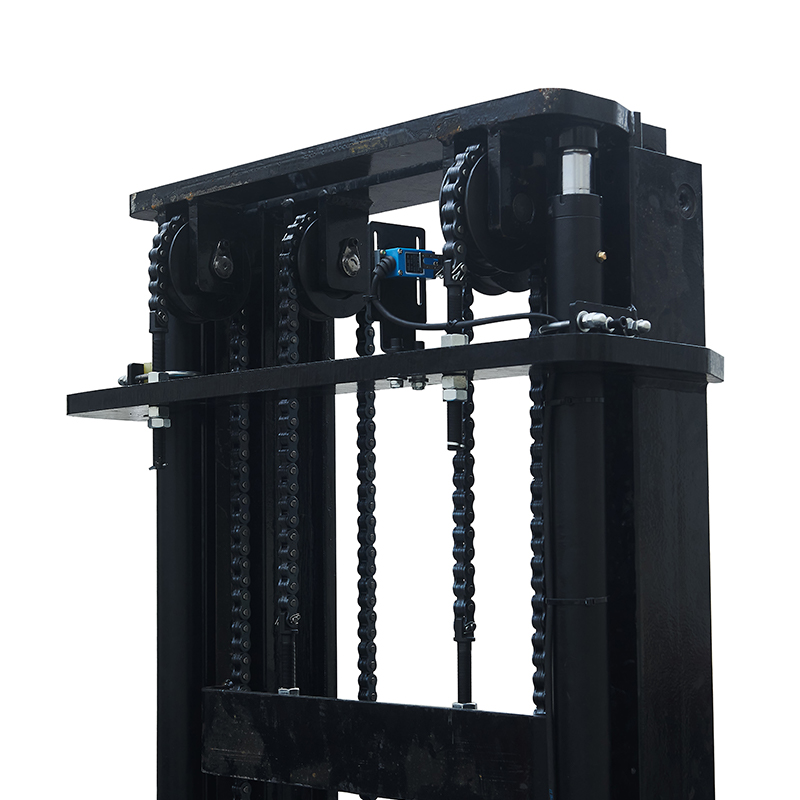

Features dual hydraulic lifting cylinders, ensuring smooth lifting and lowering with excellent lateral stability.
Powered by an industrial-grade high-capacity battery, providing strong endurance for continuous heavy-duty operations.
| Parameter | DGC25-M | DGC30-M |
| Power Source | Electric | Electric |
| Operation Type | Walkie (Pedestrian) | Walkie (Pedestrian) |
| Rated Load (kg) | 2500 | 3000 |
| Load Centre (mm) | 500 | 500 |
| Wheel Type (Drive/Load/Balance) | PU/PU/PU | PU/PU/PU |
| Driving Wheel Size (mm) | 250×80 | 250×80 |

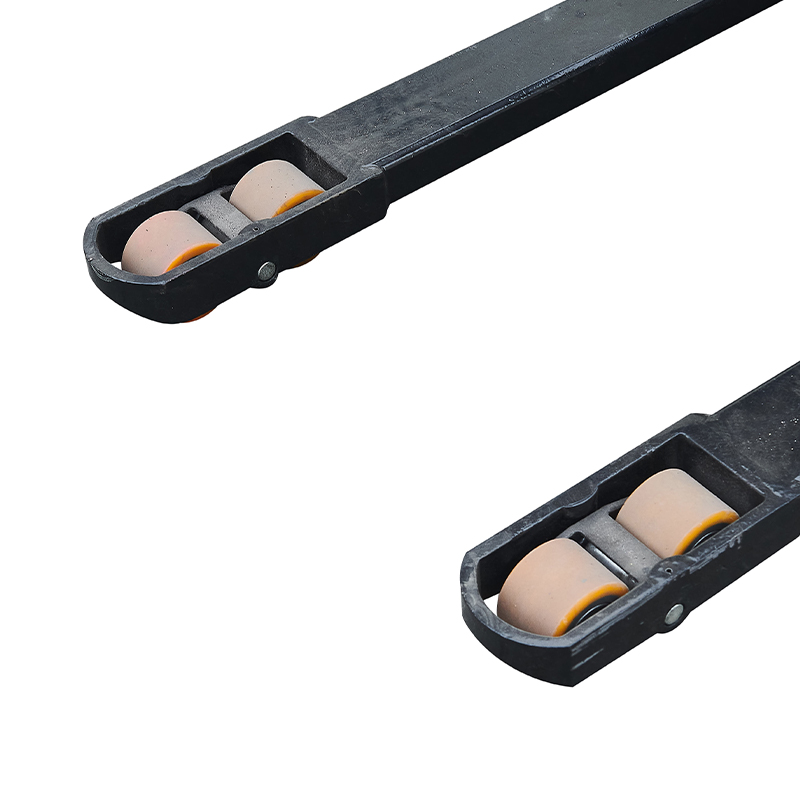

| Load Wheel Size (mm) | 4×80×70 | 4×80×70 |

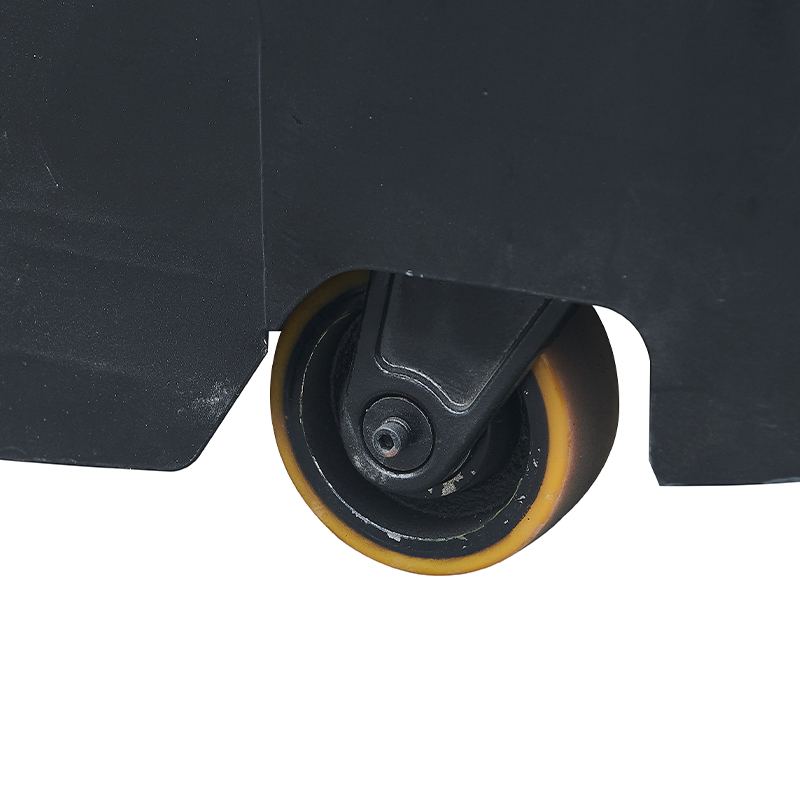

| Balance Wheel Size (mm) | 130×55 | 130×55 |
| Max. Lifting Height (mm) | 3500/3000/2500/2000 | 3500/3000/2500/2000 |
| Overall Height (mm) | 2330/2080/1830/1580 | 2330/2080/1830/1580 |
| Max. Height During Operation (mm) | 3850/3600/3350/3100 | 3850/3600/3350/3100 |
| Min. Fork Height (mm) | 90 | 90 |
| Overall Length (mm) | 2000 | 2000 |
| Overall Width (mm) | 850 | 850 |
| Fork Size (mm) | 70×200×1150 | 70×200×1150 |
| Outer Fork Width (mm) | 685 | 685 |
| Wheelbase Center Ground Clearance (mm) | 45 | 45 |
| Driving Brake | Electromagnetic | Electromagnetic |
| Driving Motor Rated Power (kW) | 1.5 | 1.8 (Stepless Speed, with Pump Control) |
| Lifting Motor Rated Power (kW) | 3 | 3 |
| Battery Voltage/Capacity (V/Ah) | 24V/160AH | 24V/210AH |
