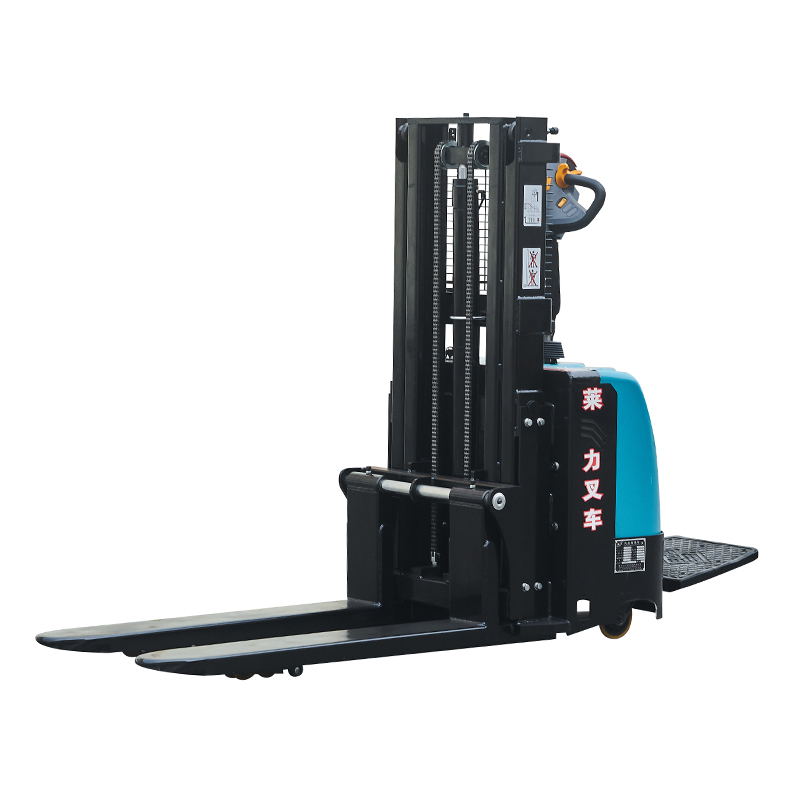

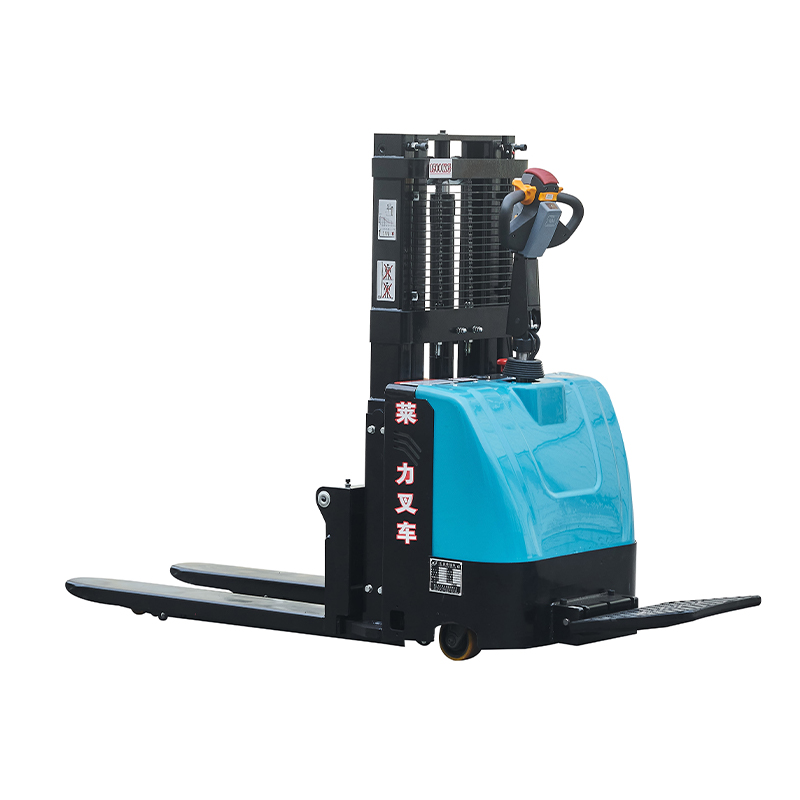

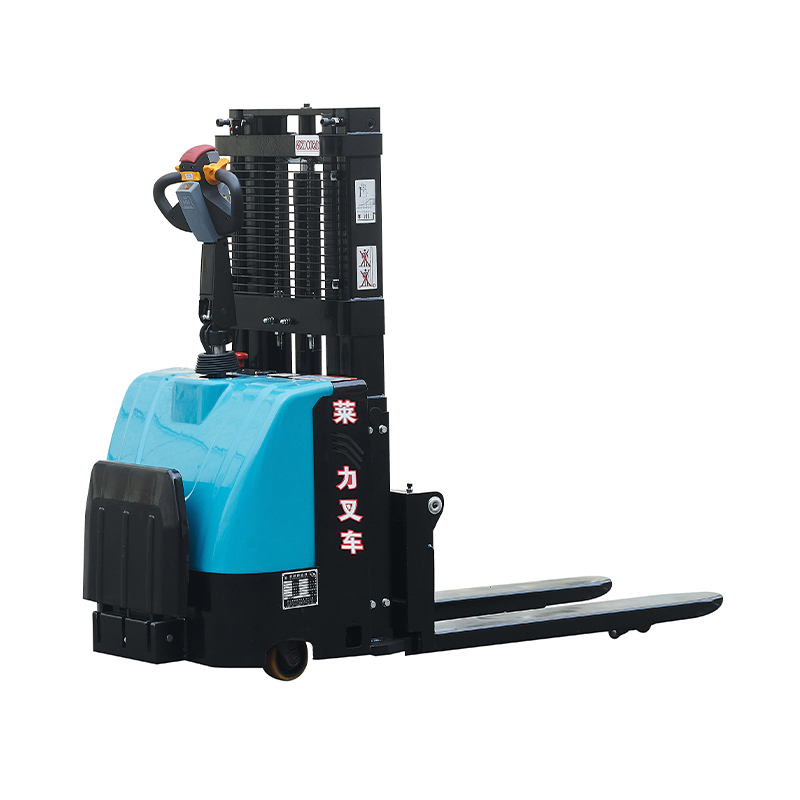

Equipped with a dual-fork independent lifting mechanism, enabling simultaneous handling of two pallets in a single operation, significantly improving efficiency.
Mid-mounted design ensures more balanced load distribution and excellent operational stability.
Adopts a mechanical steering system, providing reliable structure, precise control, and easy maintenance.

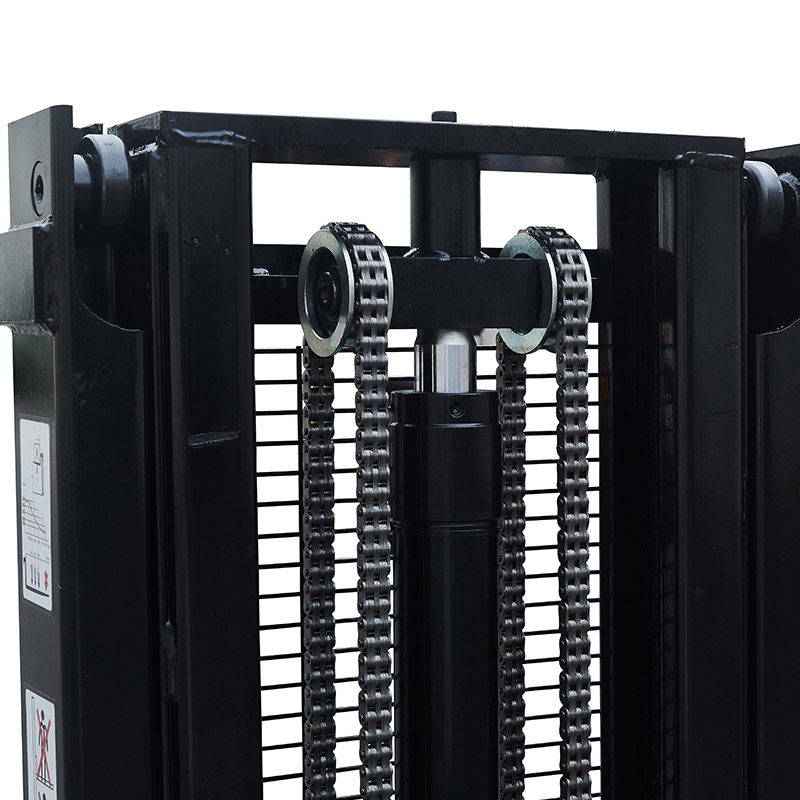

The mast uses a high-strength steel structure with excellent rigidity, ensuring stable lifting performance.
Elevated outriggers allow the truck to pass ramps and uneven surfaces, effectively handling slopes and floor irregularities while preventing chassis interference.
| Parameter | DGC-D |
| Power Source | Electric |
| Operation Type | Standing |
| Rated Load (kg) | 1500 |
| Load Centre (mm) | 500 |
| Wheelbase (mm) | 1270 |
| Service Weight (Incl. Battery) (kg) | 740/710/680/650 |
| Wheel Type (Drive/Load/Balance) | PU/PU/PU |
| Driving Wheel Size (mm) | 210×75 |

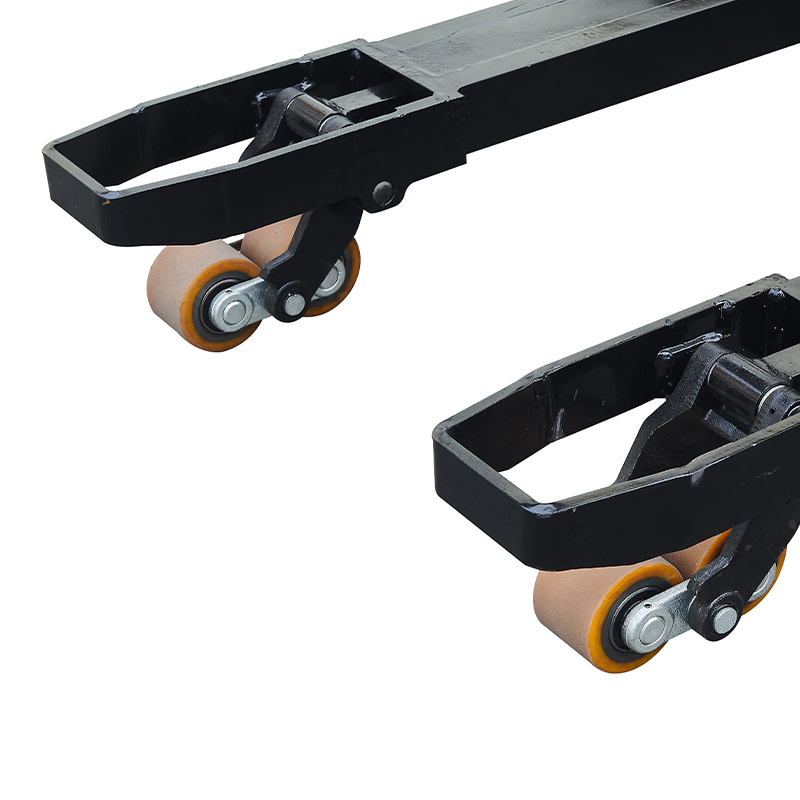

| Load Wheel Size (mm) | 4×80×60 |

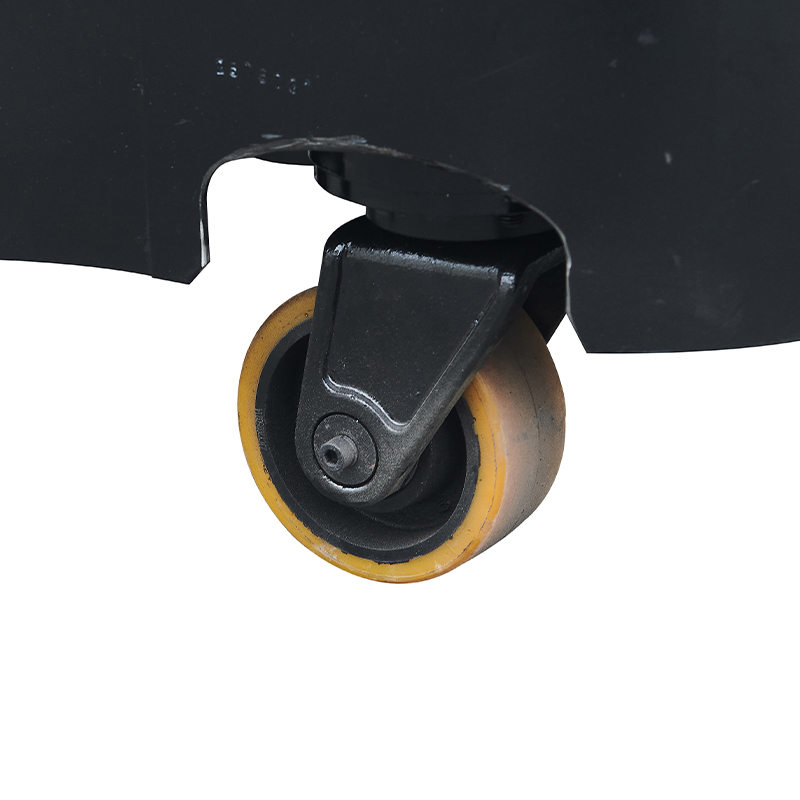

| Balance Wheel Size (mm) | 130×55 |
| Max. Lifting Height (mm) | 3500/3000/2500/2000 |
| Overall Height (mm) | 2331/2081/1831/1581 |
| Max. Height During Operation (mm) | 3850/3600/3350/3100 |
| Min. Fork Height (mm) | 92 |
| Overall Length (Excl. Pedal) (mm) | 2052/2476 |
| Overall Width (mm) | 800 |

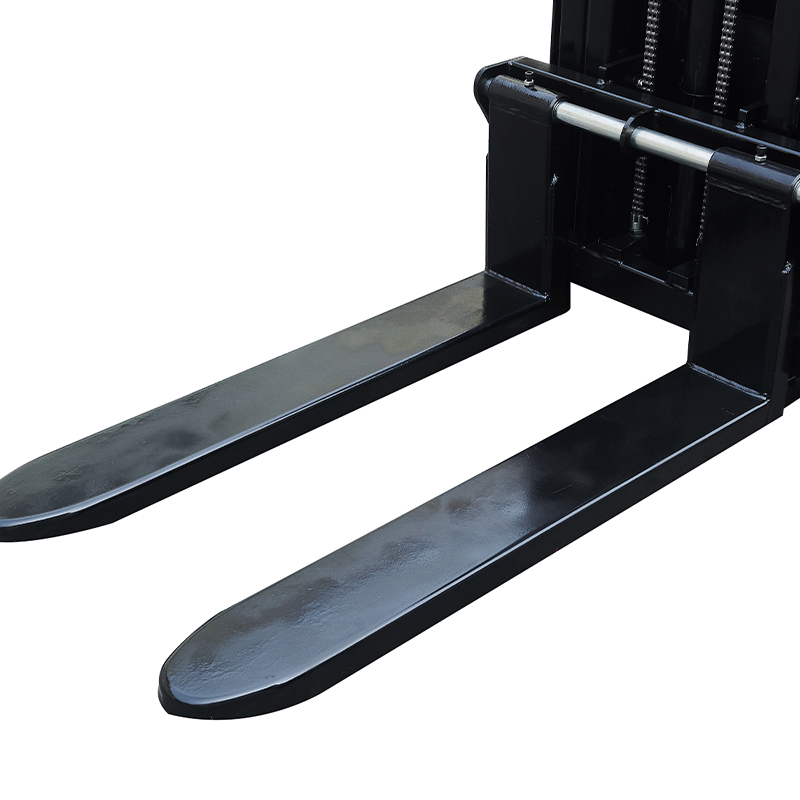

| Fork Size (mm) | 65×180×1150 |
| Outer Fork Width (mm) | 685 |
| Wheelbase Center Ground Clearance (mm) | 40 |
| Min. Aisle Width (1000×1200 Pallet) (mm) | 2350 |
| Turning Radius (mm) | 1549 |
| Travel Speed (Load/Unload) (km/h) | 4.5/5 |
| Lifting Speed (Load/Unload) (mm/s) | 93/147 |
| Descent Speed (Load/Unload) (mm/s) | 104/96 |
| Grade Ability (Load/Unload) (%) | 3/6 |
| Driving Brake | Electromagnetic |
| Driving Motor Rated Power (kW) | 0.75 |
| Lifting Motor Rated Power (kW) | 2.2 |
| Battery Voltage/Capacity (V/Ah) | 2×12V/80AH |
| Battery Weight (kg) | 30×2 |
