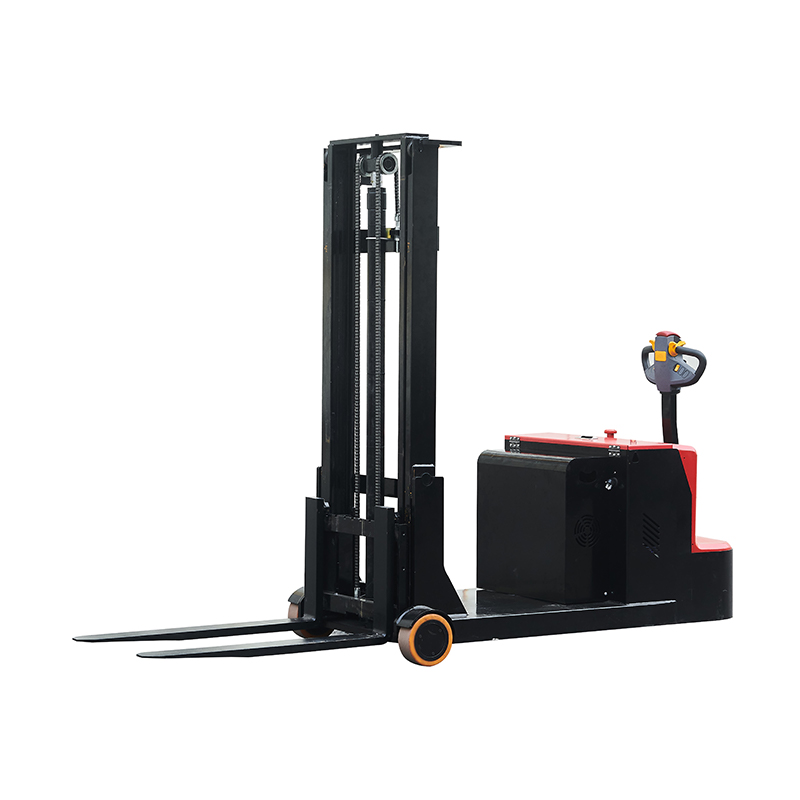

Pedestrian design ensures flexible operation even in confined spaces.
Equipped with a stable counterbalance system to ensure safe and steady operation.

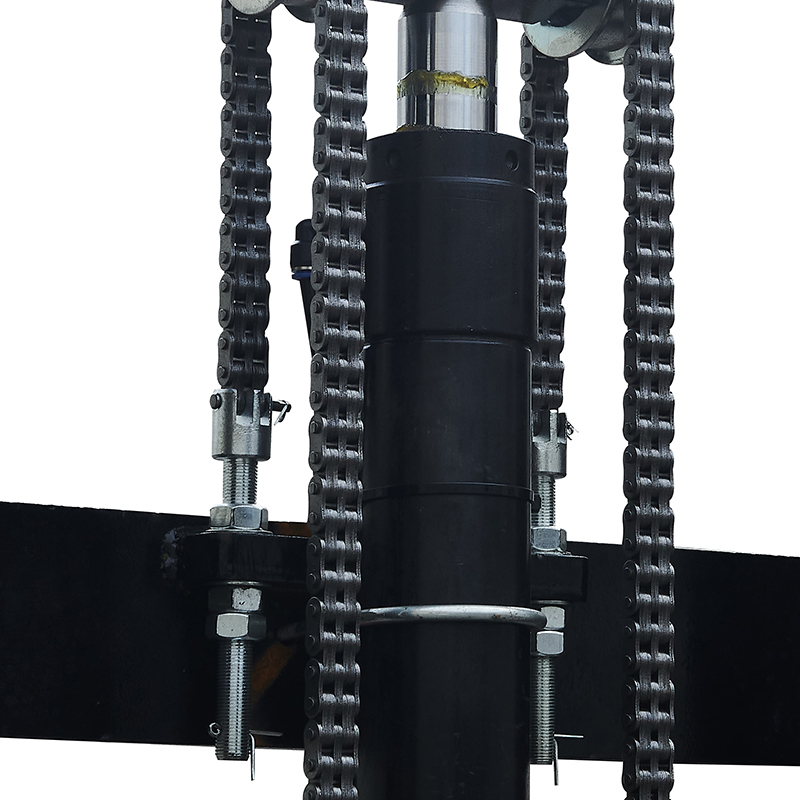

Features a robust steel mast structure capable of withstanding frequent stacking operations while maintaining structural stability.
No outriggers required, allowing smooth handling of both standard and non-standard pallets.
With a 1.5T load capacity, it is suitable for medium-duty applications, combining power performance with a compact footprint.
| Parameter | Unit | CPDX15 (New Model) |
| Maximum Load Capacity | kg | 1500 |
| Load Centre | mm | 500 |
| Maximum Lifting Height | mm | 3000 |
| Travel Speed (Unladen) | km/h | 5 |
| Travel Speed (Laden) | km/h | 4.5 |
| Lifting Speed (Unladen) | mm/s | 121 |
| Lifting Speed (Laden) | mm/s | 81 |
| Lowering Speed (Unladen) | mm/s | 105 |
| Lowering Speed (Laden) | mm/s | 103 |
| Gradeability (Unladen) | % | 10 |
| Gradeability (Laden) | % | 3 |
| Service Weight (with Battery) | kg | 1780 |
| Overall Length of Frame | mm | 2857 |
| Overall Width of Frame | mm | 961 |
| Overall Height (Mast Lowered) | mm | 2095 |
| Overall Height (Mast Lifted) | mm | 3570 |
| Wheelbase | mm | 1476 |

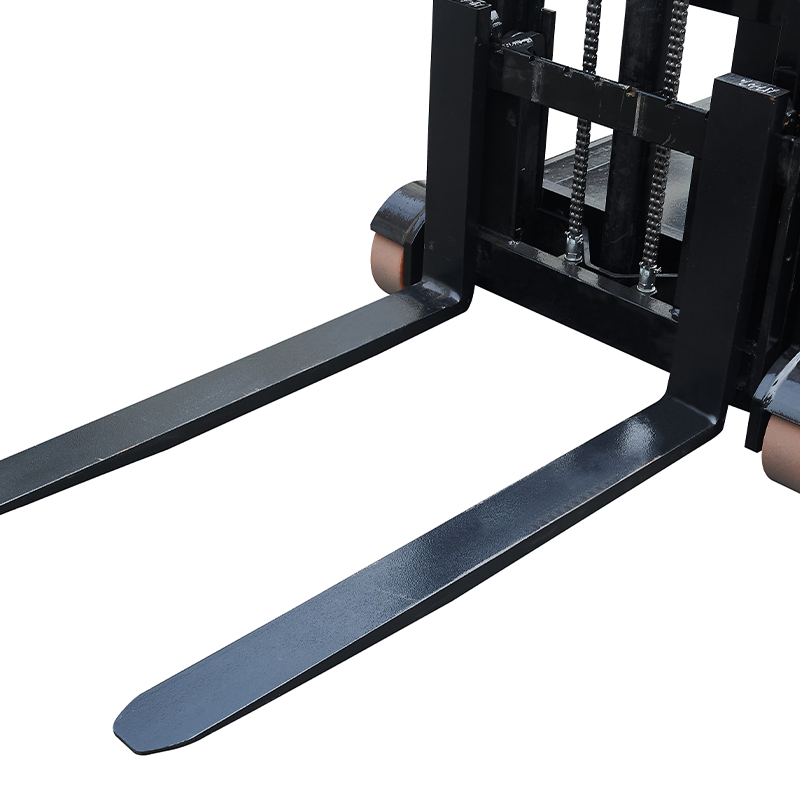

| Fork Length | mm | 1070 |
| Fork Spread Width (Adjustable) | mm | 210-680 |
| Fork Width | mm | 100 |
| Fork Height (Lowered) | mm | 50 |
| Min Ground Clearance | mm | 80 |
| Minimum Turning Radius (without Platform) | mm | 1696 |

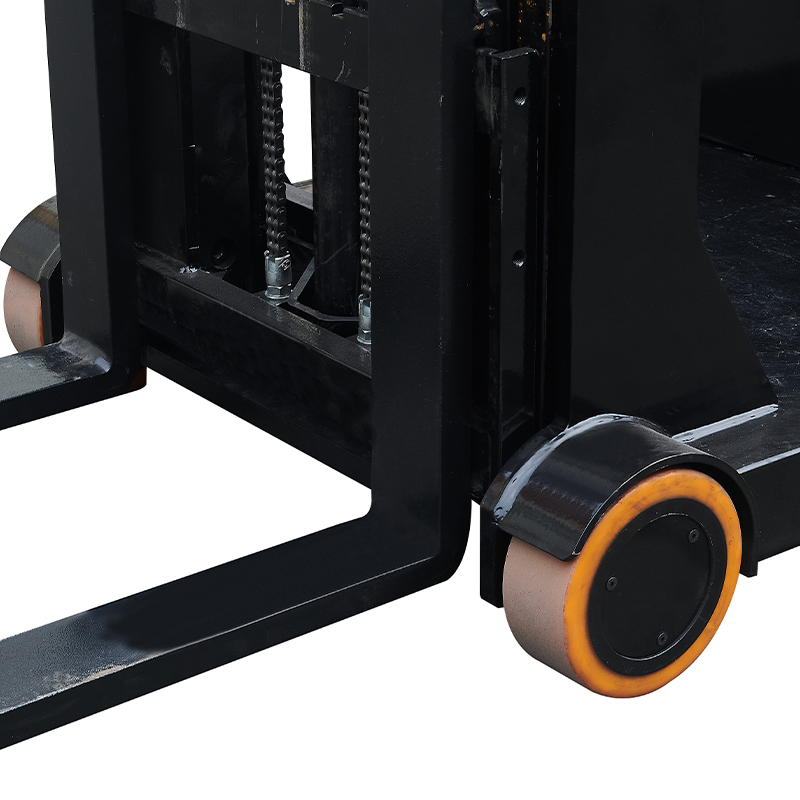

| Front Wheel (Load Wheel) | mm | 210×75 |
| Drive Wheel | mm | 250×80 |
| Drive Motor Power | kW | 1.5 |
| Lifting Motor Power | kW | 2.2 |
| Voltage | V | 24 |
| Capacity | Ah | 2×100 |
