0.5-1.5T Counterbalance Electric Stacker Forklift

Home / Product / Counterbalance Forklifts / Walkie Counterbalance Forklifts / 0.5-1.5T Counterbalance Electric Stacker Forklift
  • 0.5-1.5T Counterbalance Electric Stacker Forklift

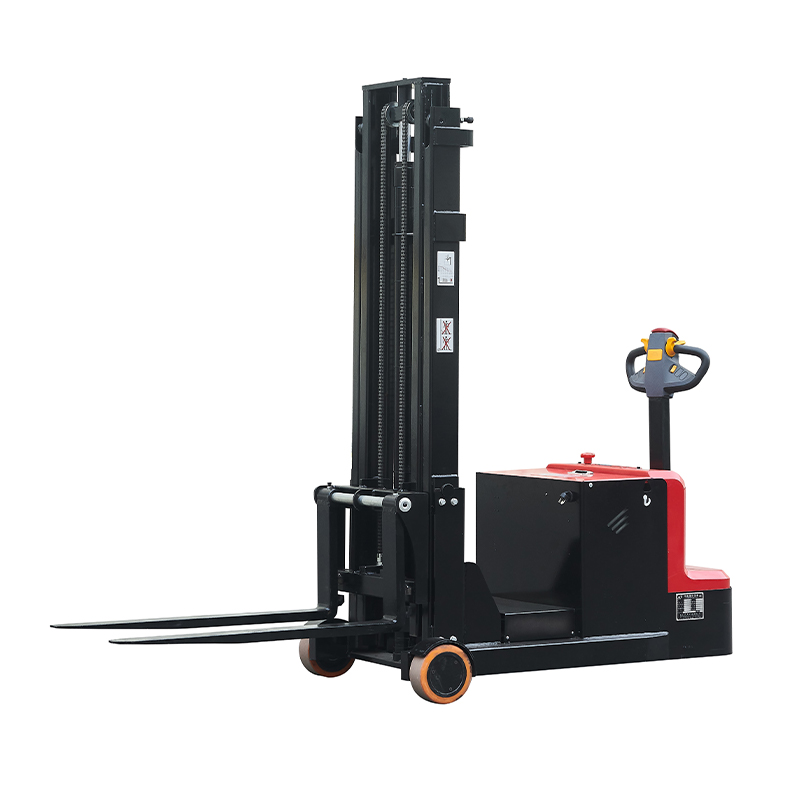

0.5-1.5T Counterbalance Electric Stacker Forklift

Compact pedestrian design allows the operator to walk alongside the truck, suitable for light to medium-duty applications.
Mechanical steering system offers a simple, reliable, and durable structure with low maintenance cost.
No outriggers, making it suitable for various pallet types, including pallets with bottom boards or uneven bases.
Available in capacities ranging from 500 kg to 1500 kg, allowing users to select according to specific working conditions.
Easy operation and convenient maintenance help reduce downtime.

Contact Us
PREV：1.5T Walkie-type Counterbalance Forklift TruckNEXT：No next article
  • Specification
  • Contact Us
Category Parameter Unit CPDX05 CPDX08 CPDX10 CPDX12 CPDX15
Performance Maximum Load Capacity kg 500 800 1000 1200 1500
Load Centre mm 500 500 500 500 500
Maximum Lifting Height mm 3000 3000 3000 3000 3000
Travel Speed (Unladen) km/h 5 5 5 5 5
Travel Speed (Laden) km/h 4.5 4.5 4.5 4.5 4.5
Lifting Speed (Unladen) mm/s 121 121 121 121 121
Lifting Speed (Laden) mm/s 81 81 81 81 81
Lowering Speed (Unladen) mm/s 105 105 105 105 105
Lowering Speed (Laden) mm/s 103 103 103 103 103
Gradeability (Unladen) % 10 10 10 10 10
Gradeability (Laden) % 3 3 3 3 3
Dimensions Service Weight (with Battery) kg 1200 1250 1280 1330 1380
Overall Length of Frame mm 2355 2435 2535 2785 3085
Overall Length of Frame (with Platform) mm - - - - -
Overall Width of Frame mm 930 930 930 930 930
Overall Height (Mast Lowered) mm 2095 2095 2095 2095 2095
Overall Height (Mast Lifted) mm 3570 3570 3570 3570 3570
Wheelbase mm 1005 1085 1185 1435 1735

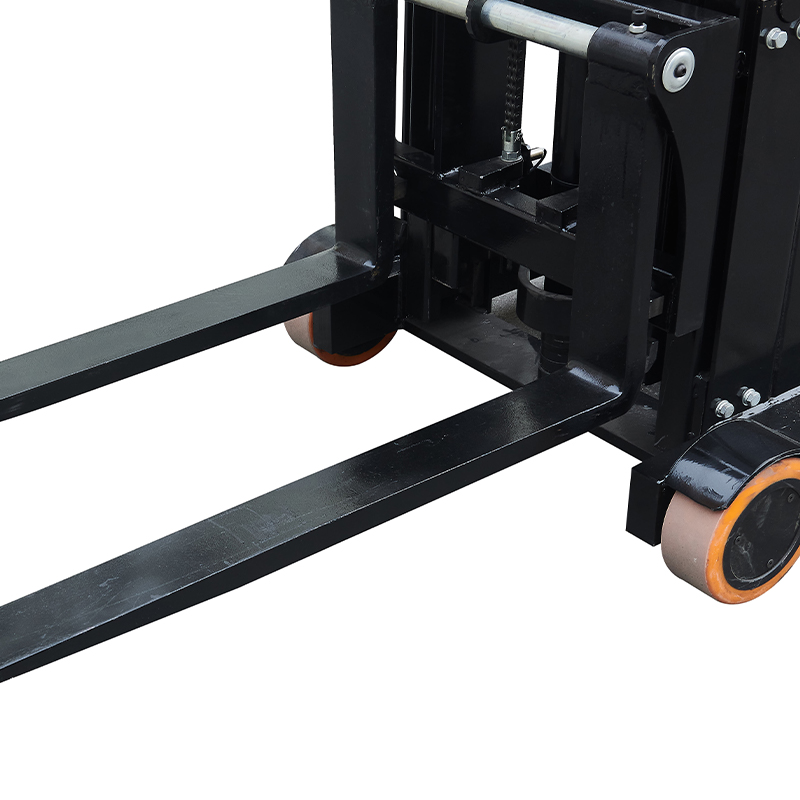

Fork Length mm 1070 1070 1070 1070 1070
Fork Spread Width (Adjustable) mm 210-600 210-600 210-600 210-600 210-600
Fork Width mm 100 100 100 100 100
Fork Height (Lowered) mm 50 50 50 50 50
Min Ground Clearance mm 80 80 80 80 80
Theoretical Min Aisle Width (Right-angle Stacking, 1200×1000) mm 2665 2745 2845 3095 3395
Min Turning Radius (without Platform) mm 1200 1275 1375 1615 1915
Min Turning Radius (with Platform) mm - - - - -

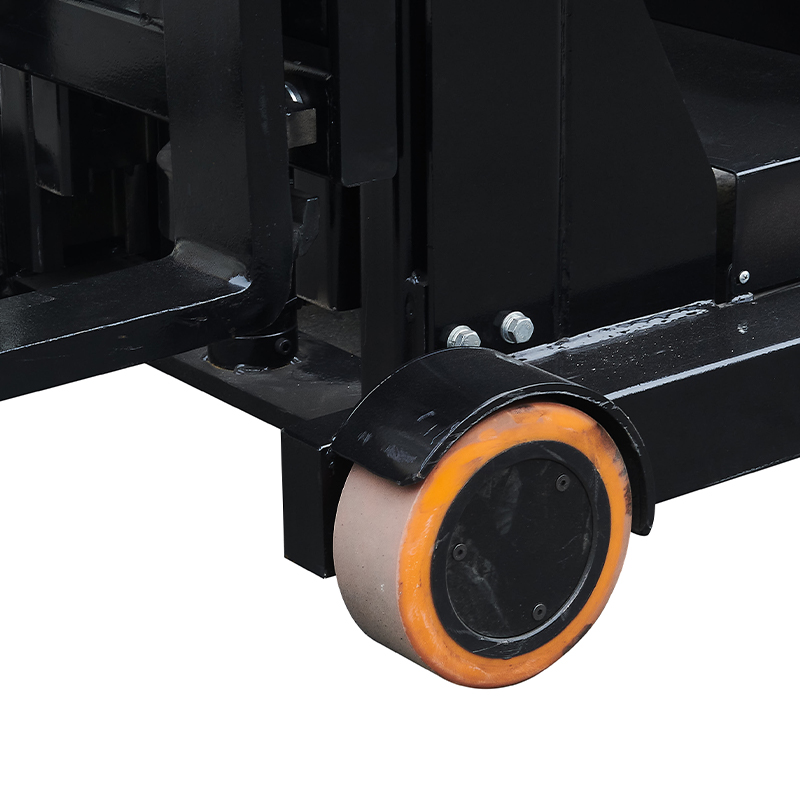

Tyre Front Wheel (Load Wheel) mm 210×85 210×85 210×85 210×85 210×85
Drive Wheel mm 210×75 210×75 210×75 210×75 210×75
Caster Wheel mm None None None None None
Wheel Material - Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane
Electrical Components Drive Motor Type - AC AC AC AC AC
Drive Motor Rated Output kW 1.1 1.1 1.1 1.1 1.5
Hoist Motor Type - DC Series Motor DC Series Motor DC Series Motor DC Series Motor DC Series Motor
Hoist Motor Rated Output kW 2.2 2.2 2.2 2.2 2.2
Battery Voltage V 24 24 24 24 24
Battery Capacity Ah 2×100 2×100 2×100 2×100 2×100
