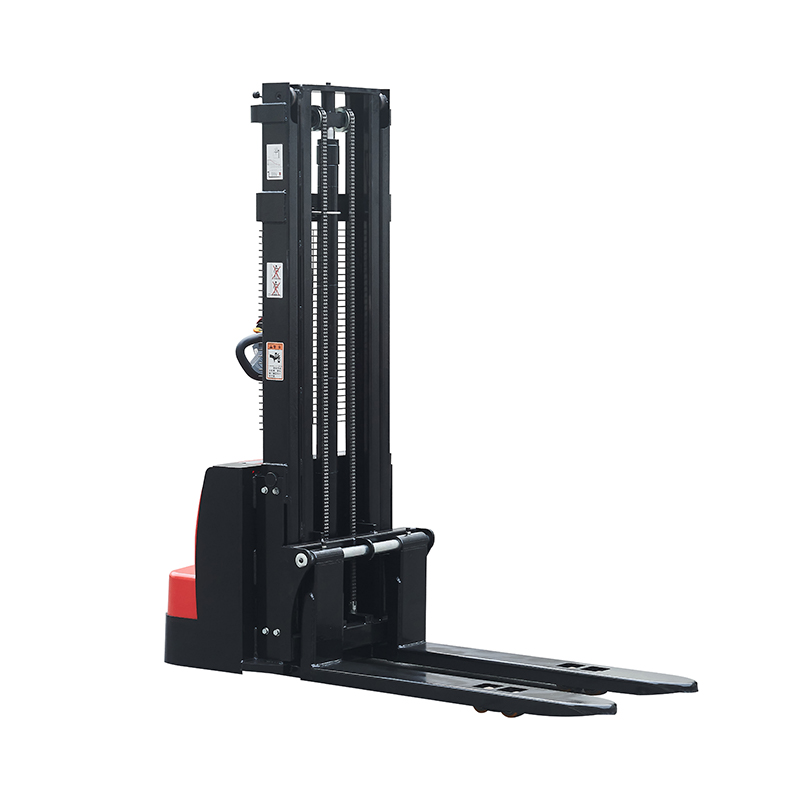

Designed as a pedestrian (walk-behind) stacker, allowing the operator to walk alongside the truck with simple and intuitive control.

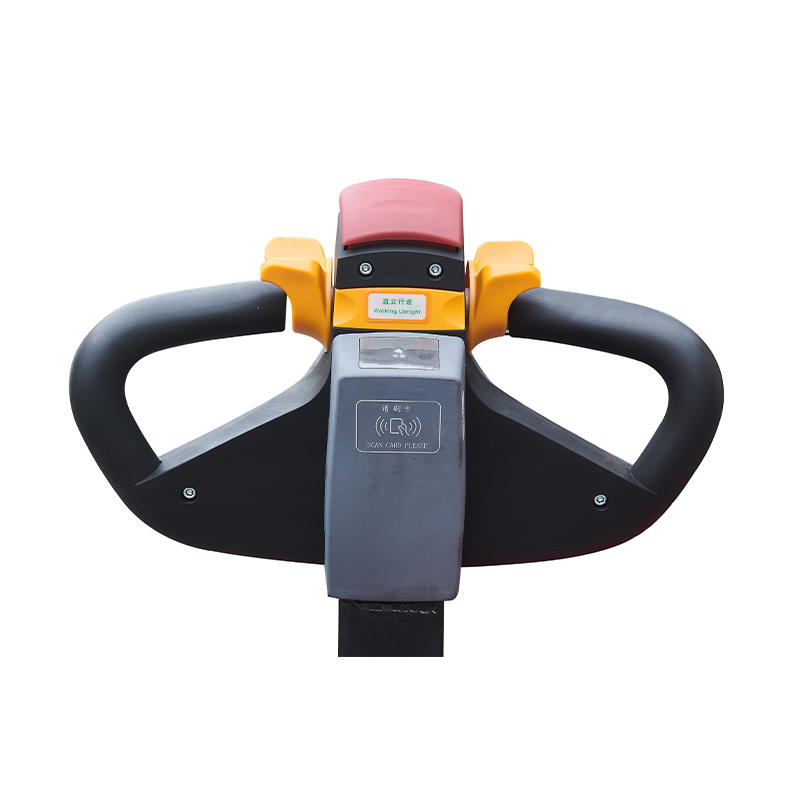

Equipped with a mechanical steering system, offering direct and reliable operation without complex electronic components, resulting in a low failure rate.

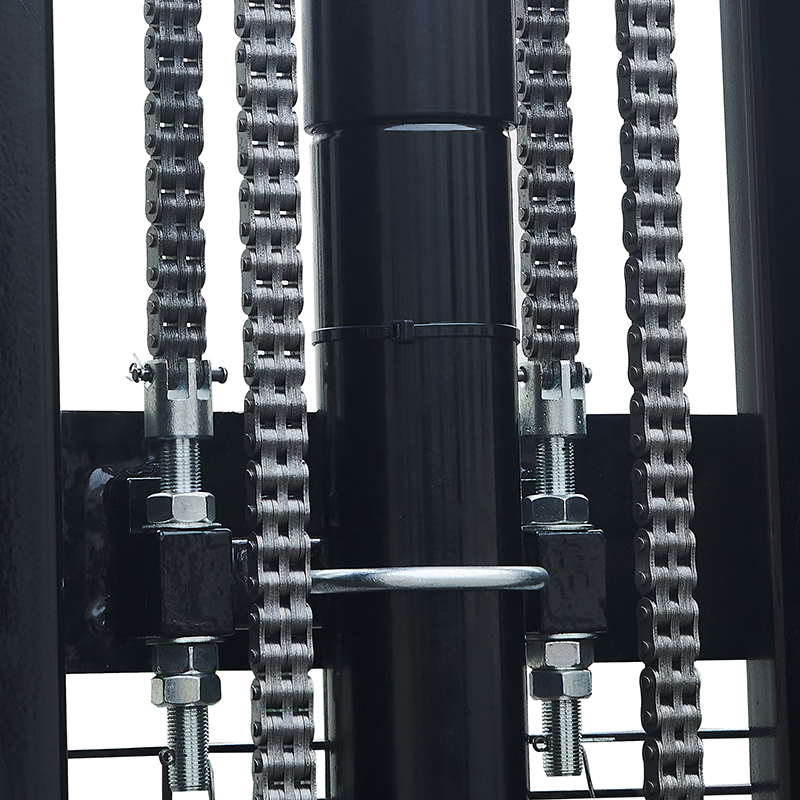

Utilizes a C-channel steel mast structure to ensure sufficient structural strength and smooth lifting and lowering.
Suitable for small to medium-sized warehouses, retail backrooms, and production lines.
| Parameter | CGC15-35 | CGC15-30 | CGC15-25 | CGC15-20 |
| Model | CGC15-35 | CGC15-30 | CGC15-25 | CGC15-20 |
| Power Source | Electric | Electric | Electric | Electric |
| Operation Type | Walkie (Pedestrian) | Walkie (Pedestrian) | Walkie (Pedestrian) | Walkie (Pedestrian) |
| Rated Load (kg) | 1500 | 1500 | 1500 | 1500 |
| Load Centre (mm) | 500 | 500 | 500 | 500 |
| Wheelbase (mm) | 1230 | 1230 | 1230 | 1230 |
| Service Weight (Incl. Battery) (kg) | 625 | 595 | 565 | 535 |
| Wheel Type (Drive/Load/Balance) | PU/PU/PU | PU/PU/PU | PU/PU/PU | PU/PU/PU |
| Driving Wheel Size (mm) | 210x75 | 210x75 | 210x75 | 210x75 |
| Load Wheel Size (mm) | 80x70 | 80x70 | 80x70 | 80x70 |
| Balance Wheel Size (mm) | 100x50 | 100x50 | 100x50 | 100x50 |
| Max. Lifting Height (mm) | 3500 | 3000 | 2500 | 2000 |
| Overall Height (mm) | 2330 | 2080 | 1830 | 1580 |
| Max. Height During Operation (mm) | 3770 | 3520 | 3270 | 3020 |
| Min. Fork Height (mm) | 90 | 90 | 90 | 90 |
| Overall Length (mm) | 1860 | 1860 | 1860 | 1860 |
| Overall Width (mm) | 790 | 790 | 790 | 790 |

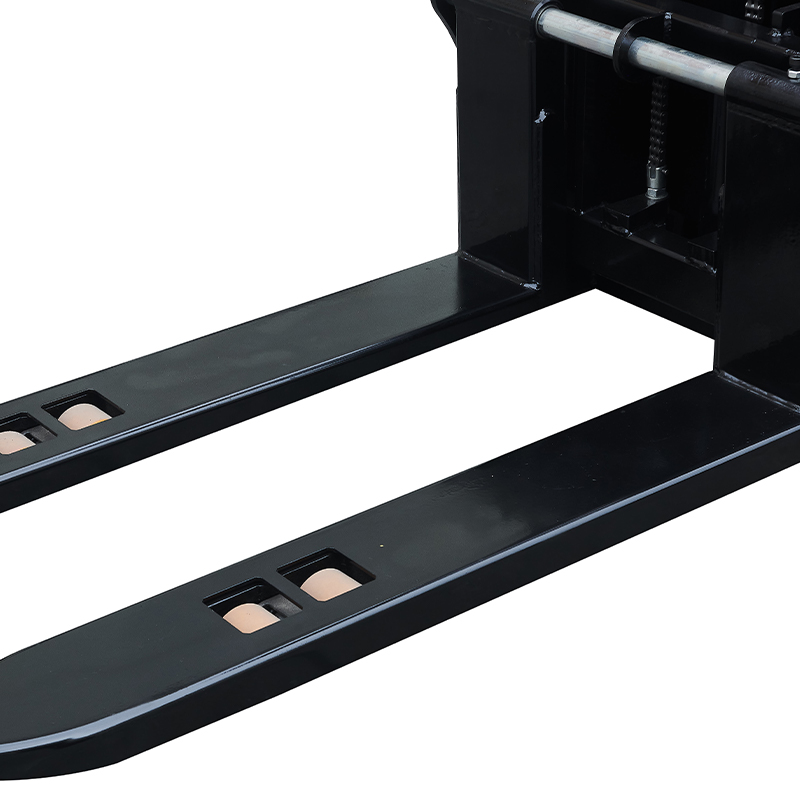

| Fork Size (mm) | 55x180x1150 | 55x180x1150 | 55x180x1150 | 55x180x1150 |
| Outer Fork Width (mm) | 685 | 685 | 685 | 685 |
| Wheelbase Center Ground Clearance (mm) | 30 | 30 | 30 | 30 |
| Min. Aisle Width (mm) | 2350 | 2350 | 2350 | 2350 |
| Turning Radius (mm) | 1360 | 1360 | 1360 | 1360 |
| Travel Speed (Load/Unload) (km/h) | 4.5/5 | 4.5/5 | 4.5/5 | 4.5/5 |
| Lifting Speed (Load/Unload) (mm/s) | 93/147 | 93/147 | 93/147 | 93/147 |
| Descent Speed (Load/Unload) (mm/s) | 104/96 | 104/96 | 104/96 | 104/96 |
| Grade Ability (Load/Unload) (%) | 3/10 | 3/10 | 3/10 | 3/10 |
| Driving Brake | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic |
| Driving Motor Rated Power (kW) | 0.75 | 0.75 | 0.75 | 0.75 |
| Lifting Motor Rated Power (kW) | 2.2 | 2.2 | 2.2 | 2.2 |
| Battery Voltage/Capacity (V/Ah) | 2x12V/80AH | 2x12V/80AH | 2x12V/80AH | 2x12V/80AH |
| Battery Weight (kg) | 30x2 | 30x2 | 30x2 | 30x2 |
Zhejiang Zhongxuan Laili Machinery Co., Ltd., is located in No.16, Huanglang Yanchang Industrial Zone Jinqing Town, Luqiao District, Taizhou City, Zhengjiang Province with convenient transportation, plant area of 100,000 square meters. The company specialized in R&D, manufacturing and sales of "LAILI” brand Hand Pallet Trucks, Electric Pallet Truck, Electric Pallet Stacker, Semi-Electric Stackers, Hydraulic Lifting Tables, Electric Lift tables etc, for warehousing and material handling uses.
The company is equipped with advanced component machining centers, robotic welding systems, shot blasting lines, and coating/painting production lines. To ensure the quality of every piece of LAILI-brand equipment, rigorous control is applied at every stage, from upstream raw material selection, through the production and processing phases, to final testing and inspection. In addition to high-quality products, LAILI provides comprehensive after-sales service that offers customers genuine peace of mind. All product series come with complete after-sales support and spare parts services, allowing customers to purchase and operate with full confidence.
In addition, the company offers customization services, striving to meet diverse customer needs with straightforward and cost-effective solutions. For example, the heavy-duty 5-ton hydraulic hand pallet truck and the ZT series of paper roll pallet trucks designed specifically for the paper manufacturing industry feature modern designs, flexible handling and ease of operation that have earned wide recognition from customers. The company has also developed and manufactured high-capacity electric pallet trucks in load ratings such as 5 tons, 8 tons, and 10 tons to accommodate varying customer requirements. Going forward, the company will continue to research, develop, and produce new products.
The company operates on the principles of "high quality, high standards, high efficiency, and high credibility" to build a strong and reliable Lely brand. Our professionalism is the foundation of your trust. We warmly welcome new and existing customers to visit us and look forward to achieving mutual success together.
